MANUAL TRANSAXLE OIL INSPECTION [C66M-R, C66MX-R]
id0515ma159600
Replacement Part
|
Gasket
Quantity: 1
Location of use: Oil level plug
|
Oil and Chemical Type
|
Manual transaxle oil
Type: API service GL-4 (SAE 75W-80)*2*4
|
Manual transaxle oil
Type: MAZDA LONG LIFE GEAR OIL G7*1*3*5
|
*1 :VIN serial No. 100001—600000 (European (L.H.D. U.K.) specs.)
*2 :VIN serial No. 600001—810000 (European (L.H.D. U.K.) specs.)
*3 :VIN serial No. 810001—ZZZZZZ (European (L.H.D. U.K.) specs.)
*4 :VIN serial No. 100001—300000 (Except european (L.H.D. U.K.) specs.)
*5 :VIN serial No. 300001—ZZZZZZ (Except european (L.H.D. U.K.) specs.)
1. Park the vehicle on level ground.
2. Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

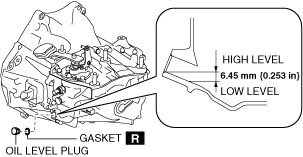

3. Remove the oil level plug and gasket.
4. Verify that the manual transaxle oil is within the range shown in the figure.
-
• If it is not within the range, adjust the manual transaxle oil level.
-
Note
-
• Mazda Long Life Gear Oil G7 is superior oil for low fuel cost and optimum shift-feel. Using Mazda Long Life Gear Oil G7 is recommended. If Mazda Long Life Gear Oil G7 cannot be obtained, use standard oil (API Service GL-4 (SAE 75W-80)).
|
Manual transaxle oil
Type: API service GL-4 (SAE 75W-80)*2*4
|
Manual transaxle oil
Type: MAZDA LONG LIFE GEAR OIL G7*1*3*5
|
*1 :VIN serial No. 100001—600000 (European (L.H.D. U.K.) specs.)
*2 :VIN serial No. 600001—810000 (European (L.H.D. U.K.) specs.)
*3 :VIN serial No. 810001—ZZZZZZ (European (L.H.D. U.K.) specs.)
*4 :VIN serial No. 100001—300000 (Except european (L.H.D. U.K.) specs.)
*5 :VIN serial No. 300001—ZZZZZZ (Except european (L.H.D. U.K.) specs.)
5. Install a new gasket and the oil level plug.
-
Tightening torque
-
39—59 N·m {4.0—6.0 kgf·m, 29—43 ft·lbf}
6. Install the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
