POWERTRAIN SYSTEM [C66M-R, C66MX-R]


id0515ma284100


Purpose, Function

•  The powertrain mechanism changes the gear combination by engaging or releasing the clutch hub and gear, and changes the power transmission route. Because of the change in the power transmission route, the drive force (speed, torque, rotation direction) input from the engine is converted.

Construction


Structural View

am3uun00001793


Operation

1GR

ac5ccn00000300

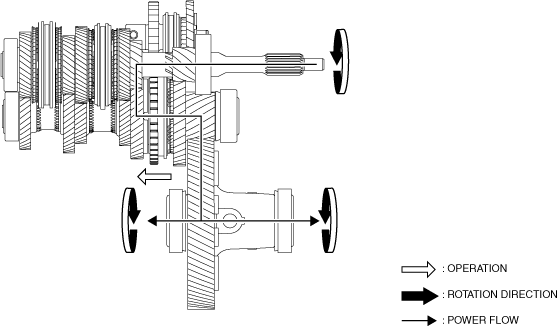

2GR

ac5ccn00000301

3GR

ac5ccn00000302

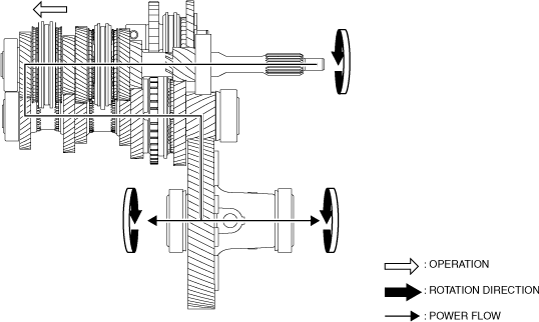

4GR

ac5ccn00000303

5GR

ac5ccn00000304

6GR

ac5ccn00000305

Reverse

ac5ccn00000306
