POWERTRAIN SYSTEM [D66M-R, D66MX-R]

id0515md284100

Purpose, Function

• The powertrain mechanism changes the gear combination by engaging or releasing the clutch hub and gear, and changes the power transmission route. Because of the change in the power transmission route, the drive force (speed, torque, rotation direction) input from the engine is converted.

Construction

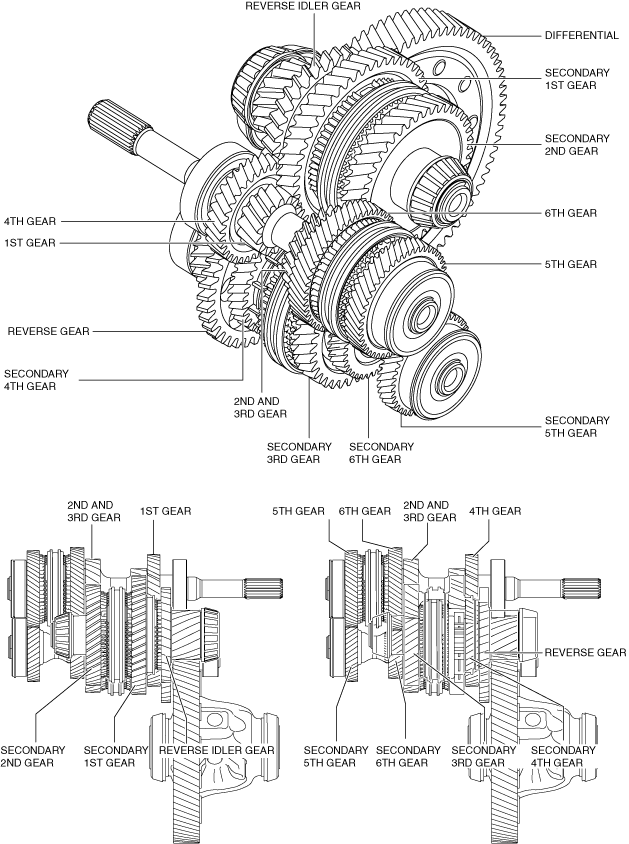

Structural View

ac5wzn00001785

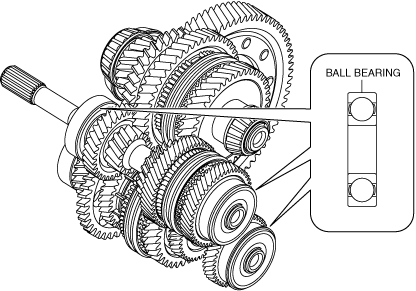

Ball bearing

• The powertrain mechanism has adopted ball bearing to the locations shown in the figure.

ac5wzn00001786

• In comparison to the previous bearing, this part reduces rotational friction resistance of the primary shaft and secondary shaft.

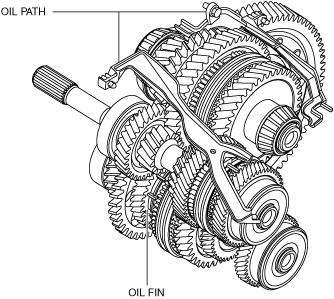

Oil fin, oil path

• The powertrain mechanism has adopted an oil fin and oil path.

ac5wzn00001787

• This mechanism is an splash lubrication-type which is the same as the previous one, however, by adopting the oil fin, the amount of transaxle oil that is raised up has been increased.

• The oil passage uniformly distributes raised transaxle oil and supplies it to each part.

• The powertrain mechanism can operate with a lesser amount of transaxle oil due to the oil fin and oil passage, and flowing resistance from the powertrain mechanism transaxle oil is reduced.

Operation

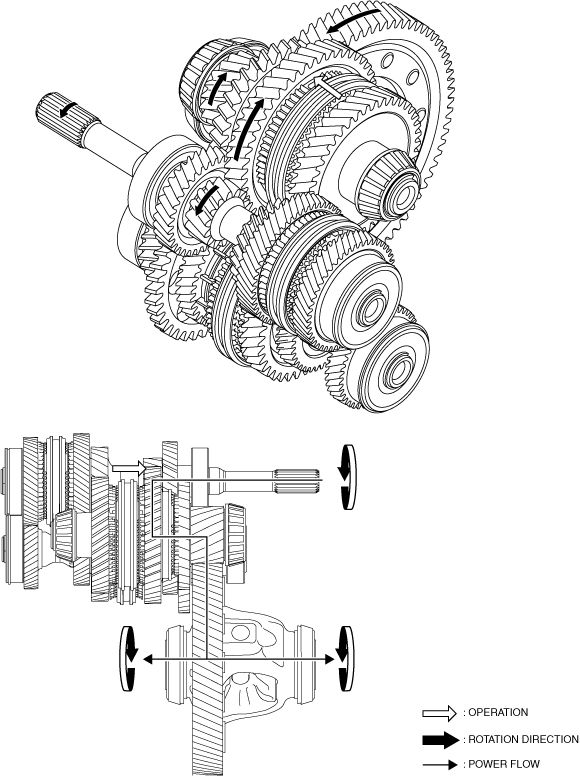

1GR

ac5wzn00001788

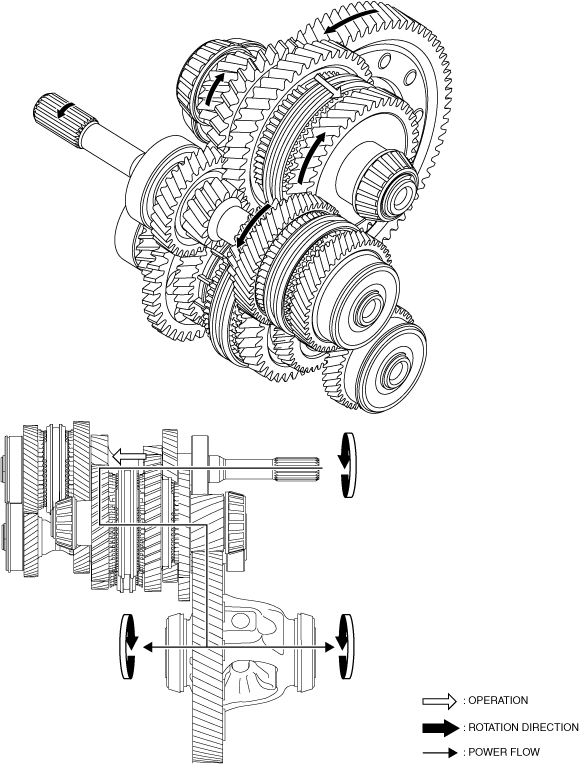

2GR

ac5wzn00001789

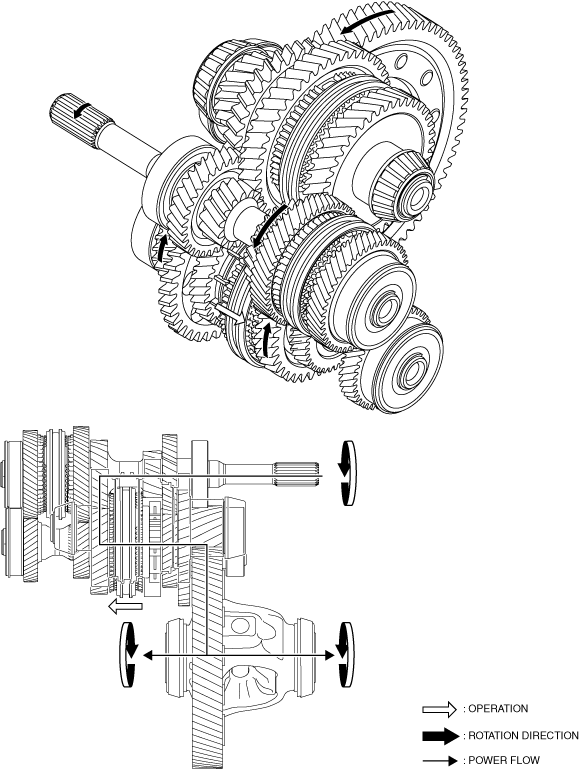

3GR

ac5wzn00001790

4GR

ac5wzn00001791

5GR

ac5wzn00001792

6GR

ac5wzn00001793

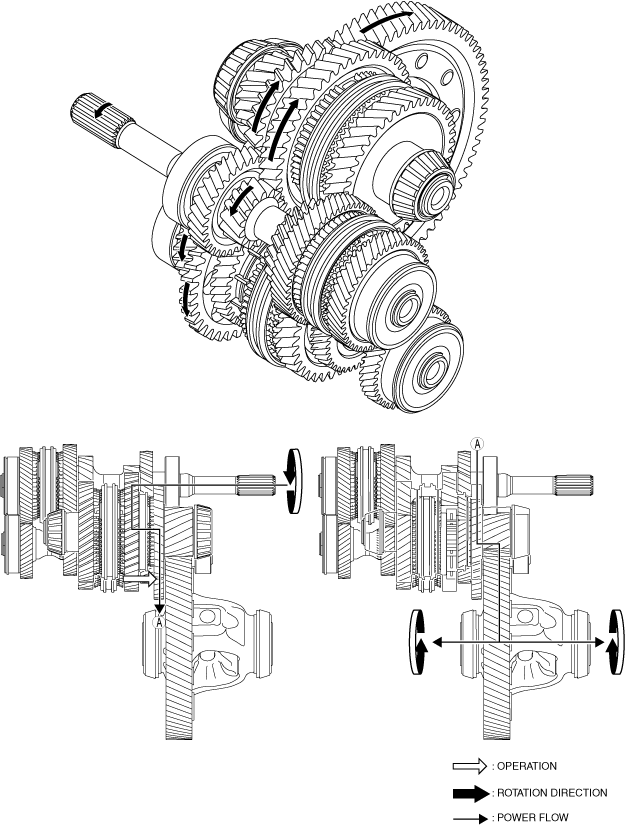

Reverse

ac5wzn00001794
