― Heating function: Warms the ATF using the radiator coolant to promote an earlier increase in the ATF temperature when its temperature is low. As a result of the earlier temperature increase, the ATF viscosity decreases which reduces drag in the transaxle.
― Cooling function: Cools the ATF using the radiator coolant to maintain optimum conditions and prevent ATF expansion and deterioration.
― A quick release connector has been adopted for the connecting area of water hose No.1. (With coolant control valve)
Without coolant control valve
ac5uun00000641
|

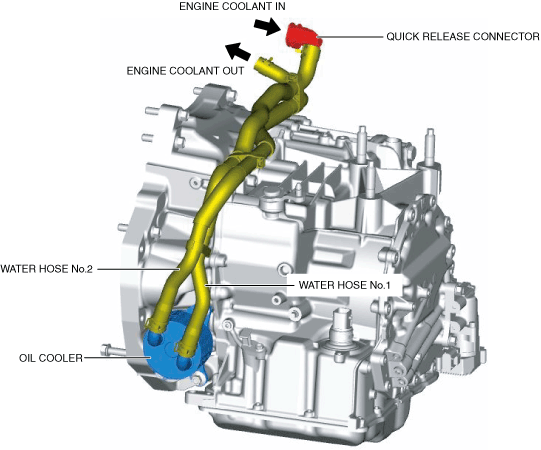

With coolant control valve
ac5wzn00004566
|
