•  The automatic transaxle warning light illuminates when the transaxle has malfunction.

•  The automatic transaxle warning light is built into the instrument cluster.

am6xun00004591

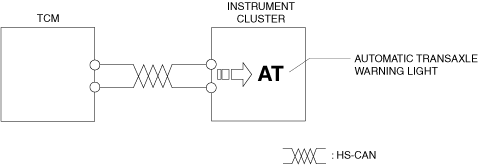

•  If the transmission has a malfunction, the TCM sends an automatic transaxle warning light illumination request signal to the instrument cluster.

ac5uun00001911

•  The TCM illuminates the automatic transaxle warning light for approx. 2 s after the ignition is switched ON to perform a bulb check of the automatic transaxle warning light.
