OIL COOLER [GW6A-EL, GW6AX-EL]

id0517i2358100


Purpose/Function

•  The oil cooler constantly maintains maximum ATF performance in the transaxle by maintaining an optimum ATF temperature which has the effect of achieving reduced fuel consumption.

Construction/Operation

•  The oil cooler performs the following operations according to the ATF temperature condition:
―  Heating function: Warms the ATF using the radiator coolant to promote an earlier increase in the ATF temperature when its temperature is low. As a result of the earlier temperature increase, the ATF viscosity decreases which reduces drag in the transaxle.
―  Cooling function: Cools the ATF using the radiator coolant to maintain optimum conditions and prevent ATF expansion and deterioration.

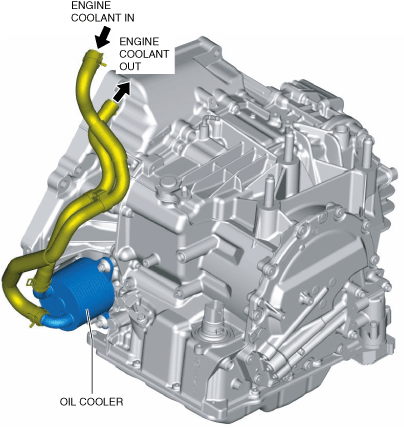

SKYACTIV-G 2.5T

ac5wzn00005298

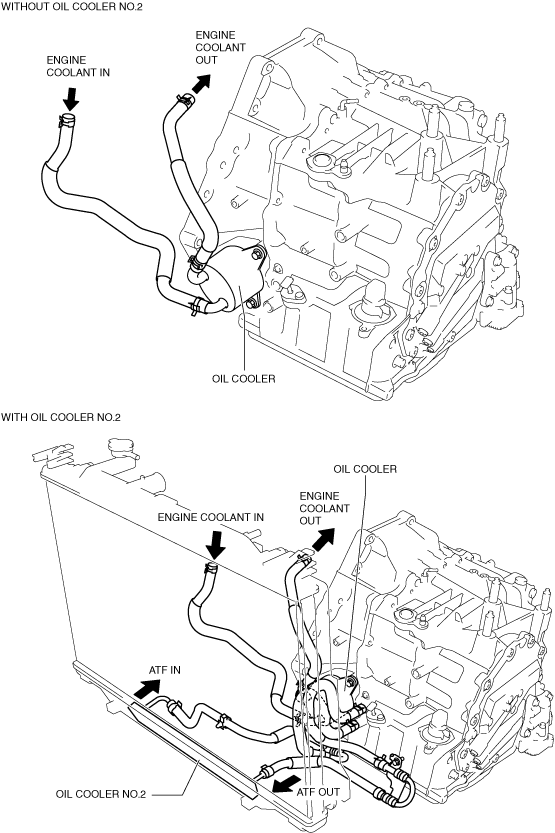

SKYACTIV-D 2.2

ac5wzn00001806
