SHIFT-LOCK OVERRIDE BUTTON INSPECTION

id051800298200

1.  Verify that the selector lever is in the P position.

2.  Switch the ignition to off.

3.  Without the brake pedal depressed, verify that the selector lever cannot be shifted from the P position.

4.  Perform the following procedure for vehicles with shift-lock override cover.

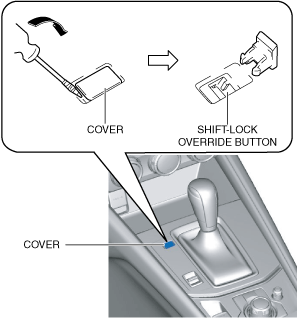

(1)  Remove the shift-lock override cover using a tape-wrapped flathead screwdriver.

ac5uuw00006545

(2)  Insert the flathead screwdriver and press the shift-lock override button.

5.  Perform the following procedure for vehicles without shift-lock override cover.

(1)  Press the shift-lock override button.

ac5wzw00009270

6.  Verify that the selector lever can be shifted from the P position.

•  If not as verified, replace the selector lever. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)
