ON-BOARD DIAGNOSTIC SYSTEM [ELECTRIC POWER STEERING (EPS)]

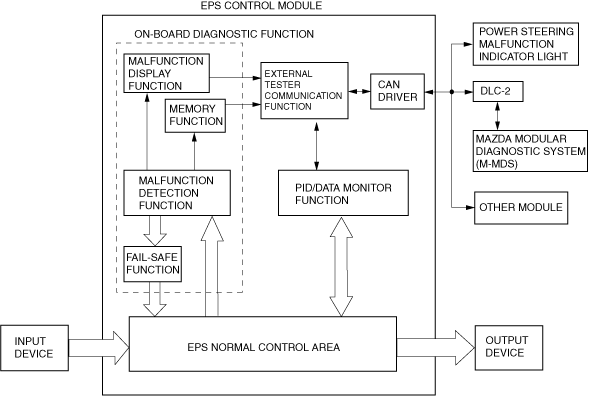

• The on-board diagnostic system consists of a malfunction detection system that detects abnormalities in input/output signals when the ignition switch is at the ON position, a data monitor function that reads out specified input/output signals.

• The data link connector 2 (DLC-2), which groups together all the connectors used for malfunction diagnosis into a single location, has been adopted, thereby improving serviceability. Diagnosis is performed by connecting the Mazda Modular Diagnostic System (M-MDS) to the DLC-2.

• In addition to DTC read-out, the Mazda Modular Diagnostic System (M-MDS) is used to clear DTCs using the display screen of the diagnostic tester, and to access the PID/data monitor, providing enhanced malfunction diagnosis and improved serviceability.

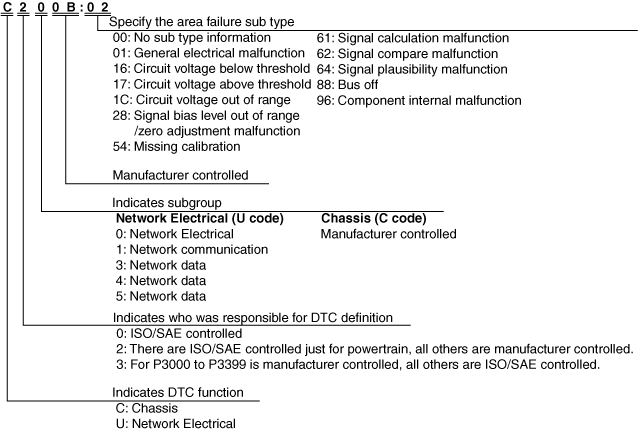

DTC	Power steering malfunction indicator light illumination status	Diagnosis system component	Fail-safe	Drive cycle	Self test type^*1	Memory function
C200B:02	Illuminated	Torque sensor	×	—	C, D	×
C200B:16	Illuminated	Torque sensor	×	—	C, D	×
C200B:1C	Illuminated	Torque sensor	×	—	C, D	×
C200B:62	Illuminated	Torque sensor	×	—	C, D	×
C200B:64	Illuminated	Torque sensor	×	—	C, D	×
C200B:85	Illuminated	Torque sensor	×	—	C, D	×
C200C:1C	Illuminated	Torque sensor	×	—	C, D	×
C200D:1C	Flashes/Illuminated*²	Resolver sensor	×	—	C, D	×
C200D:64	Illuminated	Resolver sensor	×	—	C, D	×
U0001:88	Illuminated	CAN system communication error	×	—	C, D	×
U0100:00	Illuminated	Communication error to PCM	×	—	C, D	×
U0121:00	—	Communication error to DSC HU/CM	×	—	C, D	×
U0126:00	—	Communication error to SAS control module	×	—	C, D	×
U0155:00	—	Communication error to instrument cluster	×	—	C, D	×
U0214:00	—	Communication error to start stop unit	×	—	C, D	×
U023A:00	—	Communication error to forward sensing camera (FSC)	×	—	C, D	×
U0338:00	—	Signal error from start stop unit	×	—	C, D	×
U0401:00	Illuminated	Signal (vehicle speed) error from PCM	×	—	C, D	×
—	Signal (engine speed) error from PCM	×	—	C, D	×
U0415:00	—	Signal error from DSC HU/CM	×	—	C, D	×
U0423:00	—*³	Signal (engine switch status) error from instrument cluster	×	—	C, D	×
U0428:00	—	Signal error to SAS control module	×	—	C, D	×
U0515:00	—	Signal error from start stop unit	×	—	C, D	×
U053B:00	Illuminates	Signal error to forward sensing camera (FSC)	×	—	C, D	×
U053B:61	Illuminates	Forward sensing camera (FSC)	×	—	C, D	×
U053B:82	Illuminates	Signal error to forward sensing camera (FSC)	×	—	C, D	×
U053B:83	Illuminates	Signal error to forward sensing camera (FSC)	×	—	C, D	×
U2011:19	Illuminated	EPS motor	×	—	C, D	×
U2011:1C	Illuminated	EPS motor	×	—	C, D	×
U2011:62	Illuminated	EPS motor	×	—	C, D	×
U2011:72	Illuminated	EPS motor	×	—	C, D	×
U2011:92	Illuminated	EPS motor	×	—	C, D	×
U2300:54	—	EPS configuration	×	—	C, D	×
U2300:55	Illuminated	EPS configuration	×	—	C, D	×
U2300:56	—	EPS configuration	×	—	C, D	×
U3000:16	Illuminated	EPS CM	×	—	C, D	×
U3000:1C	Illuminated	EPS CM	×	—	C, D	×
U3000:28	Illuminated	EPS CM	×	—	C, D	×
U3000:41	Illuminated	EPS CM	×	—	C, D	×
U3000:46	—	EPS CM	×	—	C, D	×
U3000:47	Illuminated	EPS CM	×	—	C, D	×
U3000:49	Illuminated	EPS CM	×	—	C, D	×
U3000:4B	—	EPS CM	×	—	C, D	×
U3000:61	Illuminated	EPS CM	×	—	C, D	×
U3000:73	Illuminated	EPS CM	×	—	C, D	×
U3000:96	Illuminated	EPS CM	×	—	C, D	×
U3003:16	Illuminated	Battery power supply	×	—	C, D	×
U3003:17	Illuminated	Battery power supply	×	—	C, D	×

DTC

Power steering malfunction indicator light illumination status

Diagnosis system component

Fail-safe

Drive cycle

Self test type^*1

Memory function

Mazda Modular Diagnostic System (M-MDS)

C200B:02

Illuminated

Torque sensor

—

C, D

C200B:16

Illuminated

Torque sensor

—

C, D

C200B:1C

Illuminated

Torque sensor

—

C, D

C200B:62

Illuminated

Torque sensor

—

C, D

C200B:64

Illuminated

Torque sensor

—

C, D

C200B:85

Illuminated

Torque sensor

—

C, D

C200C:1C

Illuminated

Torque sensor

—

C, D

C200D:1C

Flashes/Illuminated*²

Resolver sensor

—

C, D

C200D:64

Illuminated

Resolver sensor

—

C, D

U0001:88

Illuminated

CAN system communication error

—

C, D

U0100:00

Illuminated

Communication error to PCM

—

C, D

U0121:00

—

Communication error to DSC HU/CM

—

C, D

U0126:00

—

Communication error to SAS control module

—

C, D

U0155:00

—

Communication error to instrument cluster

—

C, D

U0214:00

—

Communication error to start stop unit

—

C, D

U023A:00

—

Communication error to forward sensing camera (FSC)

—

C, D

U0338:00

—

Signal error from start stop unit

—

C, D

U0401:00

Illuminated

Signal (vehicle speed) error from PCM

—

C, D

—

Signal (engine speed) error from PCM

—

C, D

U0415:00

—

Signal error from DSC HU/CM

—

C, D

U0423:00

—*³

Signal (engine switch status) error from instrument cluster

—

C, D

U0428:00

—

Signal error to SAS control module

—

C, D

U0515:00

—

Signal error from start stop unit

—

C, D

U053B:00

Illuminates

Signal error to forward sensing camera (FSC)

—

C, D

U053B:61

Illuminates

Forward sensing camera (FSC)

—

C, D

U053B:82

Illuminates

Signal error to forward sensing camera (FSC)

—

C, D

U053B:83

Illuminates

Signal error to forward sensing camera (FSC)

—

C, D

U2011:19

Illuminated

EPS motor

—

C, D

U2011:1C

Illuminated

EPS motor

—

C, D

U2011:62

Illuminated

EPS motor

—

C, D

U2011:72

Illuminated

EPS motor

—

C, D

U2011:92

Illuminated

EPS motor

—

C, D

U2300:54

—

EPS configuration

—

C, D

U2300:55

Illuminated

EPS configuration

—

C, D

U2300:56

—

EPS configuration

—

C, D

U3000:16

Illuminated

EPS CM

—

C, D

U3000:1C

Illuminated

EPS CM

—

C, D

U3000:28

Illuminated

EPS CM

—

C, D

U3000:41

Illuminated

EPS CM

—

C, D

U3000:46

—

EPS CM

—

C, D

U3000:47

Illuminated

EPS CM

—

C, D

U3000:49

Illuminated

EPS CM

—

C, D

U3000:4B

—

EPS CM

—

C, D

U3000:61

Illuminated

EPS CM

—

C, D

U3000:73

Illuminated

EPS CM

—

C, D

U3000:96

Illuminated

EPS CM

—

C, D

U3003:16

Illuminated

Battery power supply

—

C, D

U3003:17

Illuminated

Battery power supply

—

C, D

*1 :C: CMDTC self test, D: ODDTC self test

*2 :If the EPS CM detects an internal circuit malfunction in the resolver sensor, it flashes the power steering malfunction indicator light. At this time, if EPS system internal temperature increases, the assist force gradually weakens. Then if assist force decreases above the specified value, the power steering malfunction indicator light switches from flashing to illumination.

*3 :If the EPS CM detects the signal that a engine speed is below the specified value, it illuminates the power steering malfunction indicator light.

DTC	Fail-safe control status
C200B:02	Control disabled
C200B:16	Control disabled
C200B:1C	Control disabled
C200B:62	Control disabled
C200B:64	Inhibits normal control, switches to backup control, and controls electric power steering so that steering assist can be maintained
C200B:85	Control disabled
C200C:1C	Control disabled
C200D:1C	Control is maintained in the backup control and the power steering warning buzzer is sounded ― If EPS system internal temperature increases above the specified value, the EPS CM disables assistance and stops the power steering warning buzzer is sounded
C200D:64	Control disabled
U0001:88	Control enabled
U0100:00	Control is maintained by gradually changing the controlled vehicle speed and setting it to 100 km/h {62.1 mph}
U0121:00	Control enabled
U0126:00	Control enabled
U0155:00	Control enabled
U0214:00	Control enabled
U023A:00	Control enabled
U0338:00	Control enabled
U0401:00	• Vehicle speed signal malfunction ― Control is maintained by gradually changing the controlled vehicle speed and setting it to 100 km/h {62.1 mph} • Engine speed signal malfunction ― Control enabled
U0415:00	Control enabled
U0423:00	Control enabled ― If the EPS CM detects the signal that a engine speed is below the specified value, it disables assistance
U0428:00	Control enabled
U0515:00	Control enabled
U053B:00	Control enabled
U053B:61	Control enabled
U053B:82	Control enabled
U053B:83	Control enabled
U2011:19	Control disabled
U2011:1C	Control disabled
U2011:62	Control disabled
U2011:72	• An open circuit malfunction is detected in the one phase of the three-phase stator in the EPS motor ― Control is maintained in the backup control • Other malfunction detected in EPS motor internal circuit ― Control disabled
U2011:92	Control disabled
U2300:54	Control enabled
U2300:55	Control enabled
U2300:56	Control enabled
U3000:16	Control disabled
U3000:1C	Control disabled
U3000:28	Control disabled
U3000:41	Control disabled
U3000:46	Control is maintained in fail mode
U3000:47	Control disabled
U3000:49	Control disabled
U3000:4B	Control is maintained in fail mode
U3000:61	Control disabled
U3000:73	Control disabled
U3000:96	Control disabled
U3003:16	Control is maintained by gradually decreasing the motor control current However, control is inhibited if the power supply voltage is the specified value of less.
U3003:17	Control disabled

DTC

Fail-safe control status

Mazda Modular Diagnostic System (M-MDS)

C200B:02

Control disabled

C200B:16

Control disabled

C200B:1C

Control disabled

C200B:62

Control disabled

C200B:64

Inhibits normal control, switches to backup control, and controls electric power steering so that steering assist can be maintained

C200B:85

Control disabled

C200C:1C

Control disabled

C200D:1C

Control is maintained in the backup control and the power steering warning buzzer is sounded

― If EPS system internal temperature increases above the specified value, the EPS CM disables assistance and stops the power steering warning buzzer is sounded

C200D:64

Control disabled

U0001:88

Control enabled

U0100:00

Control is maintained by gradually changing the controlled vehicle speed and setting it to 100 km/h {62.1 mph}

U0121:00

Control enabled

U0126:00

Control enabled

U0155:00

Control enabled

U0214:00

Control enabled

U023A:00

Control enabled

U0338:00

Control enabled

U0401:00

• Vehicle speed signal malfunction

― Control is maintained by gradually changing the controlled vehicle speed and setting it to 100 km/h {62.1 mph}

• Engine speed signal malfunction

― Control enabled

U0415:00

Control enabled

U0423:00

Control enabled

― If the EPS CM detects the signal that a engine speed is below the specified value, it disables assistance

U0428:00

Control enabled

U0515:00

Control enabled

U053B:00

Control enabled

U053B:61

Control enabled

U053B:82

Control enabled

U053B:83

Control enabled

U2011:19

Control disabled

U2011:1C

Control disabled

U2011:62

Control disabled

U2011:72

• An open circuit malfunction is detected in the one phase of the three-phase stator in the EPS motor

― Control is maintained in the backup control

• Other malfunction detected in EPS motor internal circuit

― Control disabled

U2011:92

Control disabled

U2300:54

Control enabled

U2300:55

Control enabled

U2300:56

Control enabled

U3000:16

Control disabled

U3000:1C

Control disabled

U3000:28

Control disabled

U3000:41

Control disabled

U3000:46

Control is maintained in fail mode

U3000:47

Control disabled

U3000:49

Control disabled

U3000:4B

Control is maintained in fail mode

U3000:61

Control disabled

U3000:73

Control disabled

U3000:96

Control disabled

U3003:16

Control is maintained by gradually decreasing the motor control current

However, control is inhibited if the power supply voltage is the specified value of less.

U3003:17

Control disabled

Snapshot data item	Unit	Data contents	Corresponding data monitor items
AAT	°C, °F	Ambient air temperature	—
APP_STATUS	Accelerator Pedal Off/ Under 20%/ Over 20%/ FAIL	Accelerator pedal position	—
CEN_TRQ_S	Nm	Center value of torque sensor	CEN_TRQ_S
CFG_STATUS	Config Complete/ Not Configured/ Config Error	Instrument cluster configuration status	—
ECT_STATUS	Under 0 degrees C/ 0 - Under 80 degrees C/ Over 80 degrees C/ FAIL	Engine coolant temperature status	—
ECU_IN_TMP	°C, °F	ECU internal temperature	ECU_IN_TMP
ENG_RPM	RPM	Engine speed	ENG_RPM
IC_VPWR	V	Instrument cluster power supply	VPWR*²
IG-ON_TIMER	hh:mm:ss*¹	Elapsed time since ignition was switched ON Note • The instrument cluster records the elapsed time since the ignition was switched ON.	—
LAS_CUR	A	Lane-keep assist system control output current	LAS_CUR
MT_CURRENT	A	Motor current	MT_CURRENT
OH_CR_C	No/Yes	Current overheat protection control (complete)	OH_CR_C
OH_CR_M	No/Yes	Current overheat protection control (middle)	OH_CR_M
OH_HIST_C	No/Yes	History of overheat protection control (complete)	OH_HIST_C
OH_HIST_M	No/Yes	History of overheat protection control (middle)	OH_HIST_M
OH_IG_CNT_C	—	The number of times the ignition is switched ON during the period from when overheat protection control (complete) is finished to the time the next overheat protection control (complete) is started • Displays a maximum number of 255 times in which the ignition is switched ON until the first overheat protection control (complete) is started. • During overheat protection control (complete), the number of times the ignition is switched ON is not counted, and 0 is displayed.	OH_IG_CNT_C
OH_IG_CNT_M	—	The number of times the ignition is switched ON during the period from when overheat protection control (middle) is finished to the time the next overheat protection control (middle) is started • Displays a maximum number of 255 times in which the ignition is switched ON until the first overheat protection control (middle) is started. • During overheat protection control (middle), the number of times the ignition is switched ON is not counted, and 0 is displayed.	OH_IG_CNT_M
PWR_MODE_KEY	Key Out/Key Recently Out (Position 0)/Accessory (Position 1)/Post Ignition (Position 2)/Ignition On (Position 2)/Running (Position 2)/Running - Starting	• Key Out: Ignition switched to off • Key Recently Out (Position 0): Elapsed time within 3 s since ignition was switched to off • Accessory (Position 1): Ignition is switched to ACC • Post Ignition (Position 2): Elapsed time within 3 s since ignition was switched ON • Ignition On (Position 2): Ignition switched ON (engine off) • Running (Position 2): Ignition switched ON (engine on) • Running - Starting: Cranking condition	—
RPM_STATUS	Engine Stop/ Under1500rpm/ Over1500rpm/ FAIL	Engine RPM status	TACHOMTR^*2
SHIFT_STATUS	P/N D/ R/ FAIL	Shift position status	—
STR_ANG	°	Steering wheel angle	STR_ANG
STR_ANG_EST	°	Steering wheel estimated absolute angle	STR_AB_EST
STR_ROT_SPD	°/s	Steering wheel rotation speed	STR_ROT_SPD
STR_TRQ_S_M	Nm	Steering shaft torque (Main)	STR_TRQ_S_M
STR_TRQ_S_S	Nm	Steering shaft torque (Sub)	STR_TRQ_S_S
TOTAL_DIST	km, ft, mi	Accumulated total traveled distance from completion of vehicle until EPS CM detects DTC (Odometer value in instrument cluster)	—
TOTAL_TIME	hh:mm:ss*¹	Accumulated total elapsed time since vehicle completion until EPS CM detects a DTC Note • When the ROOM removed, and the ignition is switched off, the time is not included in the elapsed time.	TOTAL_TIME^*2
VPWR	V	Power supply	VPWR
VSPD	KPH, MPH	Vehicle speed	VSPD
VSPD_STATUS	Stop/ 0-10km/h/ Over10km/h/ FAIL	Vehicle speed status	SPEEDOMTR^*2

Snapshot data item

Unit

Data contents

Corresponding data monitor items

AAT

°C, °F

Ambient air temperature

—

APP_STATUS

Accelerator Pedal Off/

Under 20%/

Over 20%/

FAIL

Accelerator pedal position

—

CEN_TRQ_S

Center value of torque sensor

CEN_TRQ_S

CFG_STATUS

Config Complete/

Not Configured/

Config Error

Instrument cluster configuration status

—

ECT_STATUS

Under 0 degrees C/

0 - Under 80 degrees C/

Over 80 degrees C/

FAIL

Engine coolant temperature status

—

ECU_IN_TMP

°C, °F

ECU internal temperature

ECU_IN_TMP

ENG_RPM

RPM

Engine speed

ENG_RPM

IC_VPWR

Instrument cluster power supply

VPWR*²

IG-ON_TIMER

hh:mm:ss*¹

Elapsed time since ignition was switched ON

Note

• The instrument cluster records the elapsed time since the ignition was switched ON.

—

LAS_CUR

Lane-keep assist system control output current

LAS_CUR

MT_CURRENT

Motor current

MT_CURRENT

OH_CR_C

No/Yes

Current overheat protection control (complete)

OH_CR_C

OH_CR_M

No/Yes

Current overheat protection control (middle)

OH_CR_M

OH_HIST_C

No/Yes

History of overheat protection control (complete)

OH_HIST_C

OH_HIST_M

No/Yes

History of overheat protection control (middle)

OH_HIST_M

OH_IG_CNT_C

—

The number of times the ignition is switched ON during the period from when overheat protection control (complete) is finished to the time the next overheat protection control (complete) is started

• Displays a maximum number of 255 times in which the ignition is switched ON until the first overheat protection control (complete) is started.

• During overheat protection control (complete), the number of times the ignition is switched ON is not counted, and 0 is displayed.

OH_IG_CNT_C

OH_IG_CNT_M

—

The number of times the ignition is switched ON during the period from when overheat protection control (middle) is finished to the time the next overheat protection control (middle) is started

• Displays a maximum number of 255 times in which the ignition is switched ON until the first overheat protection control (middle) is started.

• During overheat protection control (middle), the number of times the ignition is switched ON is not counted, and 0 is displayed.

OH_IG_CNT_M

PWR_MODE_KEY

Key Out/Key Recently Out (Position 0)/Accessory (Position 1)/Post Ignition (Position 2)/Ignition On (Position 2)/Running (Position 2)/Running - Starting

• Key Out: Ignition switched to off

• Key Recently Out (Position 0): Elapsed time within 3 s since ignition was switched to off

• Accessory (Position 1): Ignition is switched to ACC

• Post Ignition (Position 2): Elapsed time within 3 s since ignition was switched ON

• Ignition On (Position 2): Ignition switched ON (engine off)

• Running (Position 2): Ignition switched ON (engine on)

• Running - Starting: Cranking condition

—

RPM_STATUS

Engine Stop/

Under1500rpm/

Over1500rpm/

FAIL

Engine RPM status

TACHOMTR^*2

SHIFT_STATUS

P/N

FAIL

Shift position status

—

STR_ANG

Steering wheel angle

STR_ANG

STR_ANG_EST

Steering wheel estimated absolute angle

STR_AB_EST

STR_ROT_SPD

°/s

Steering wheel rotation speed

STR_ROT_SPD

STR_TRQ_S_M

Steering shaft torque (Main)

STR_TRQ_S_M

STR_TRQ_S_S

Steering shaft torque (Sub)

STR_TRQ_S_S

TOTAL_DIST

km, ft, mi

Accumulated total traveled distance from completion of vehicle until EPS CM detects DTC (Odometer value in instrument cluster)

—

TOTAL_TIME

hh:mm:ss*¹

Accumulated total elapsed time since vehicle completion until EPS CM detects a DTC

Note

• When the ROOM removed, and the ignition is switched off, the time is not included in the elapsed time.

TOTAL_TIME^*2

VPWR

Power supply

VPWR

VSPD

KPH, MPH

Vehicle speed

VSPD

VSPD_STATUS

Stop/

0-10km/h/

Over10km/h/

FAIL

Vehicle speed status

SPEEDOMTR^*2

*1 :The seconds may be indicated after the decimal point.

*2 :Instrument cluster PID

PID name (definition)	Unit/Operation	Operation Status (Reference)
CEN_TRQ_S	Nm	• Torque sensor neutral position: Near 0 Nm
ECU_IN_TMP	°C, °F	• Displays temperature of board in EPS control module: -40°C—+215°C {-40°F—419°F}
LAS_CUR	A	• Lane-keep assist system is not operated: 0 A • Steered: Changes to positive or negative
ENG_RPM	RPM	• Engine stopped: 0 RPM • Engine rotating at 3,000 RPM: 3,000 RPM
MT_CURRENT	A	• When not steered: Near 0 A • Steered: Changes to positive or negative
OH_CR_C	Yes/No	• Overheat protection control (complete) is operating: Yes • Overheat protection control (complete) is not operating: No
OH_CR_M	Yes/No	• Overheat protection control (middle) is operating: Yes • Overheat protection control (middle) is not operating: No
OH_HIST_C	Yes/No	• Before overheat protection control (complete) has operated: Yes • Before overheat protection control (complete) has not operated: No
OH_HIST_M	Yes/No	• Before overheat protection control (middle) has operated: Yes • Before overheat protection control (middle) has not operated: No
OH_IG_CNT_C	—	• The number of times the ignition is switched ON during the period from when overheat protection control (complete) is finished to the time the next overheat protection control (complete) is started ― Displays a maximum number of 255 times in which the ignition is switched ON until the first overheat protection control (complete) is started. ― During overheat protection control (complete), the number of times the ignition is switched ON is not counted, and 0 is displayed.
OH_IG_CNT_M	—	• The number of times the ignition is switched ON during the period from when overheat protection control (middle) is finished to the time the next overheat protection control (middle) is started ― Displays a maximum number of 255 times in which the ignition is switched ON until the first overheat protection control (middle) is started. ― During overheat protection control (middle), the number of times the ignition is switched ON is not counted, and 0 is displayed.
STR_AB_EST	°	• Steering wheel in neutral position (not turned): 0° • Steered left: Changes to 0°—Positive • Steered right: Changes to 0°—Negative Note • The signal displayed in this item is a estimated absolute steering angle signal output.
STR_ANG	°	• Steering wheel position when ignition is switched ON (engine off or on): 0° • Steered left: Changes to 0°—Positive • Steered right: Changes to 0°—Negative Note • The signal displayed in this item is a steering angle (relative angle) signal.
STR_ROT_SPD	°/s	• Not steered: Near 0 °/s • Steered: Changes according to steering speed
STR_TRQ_S_M	Nm	• Not steered: Near 0 Nm • Steered left: Changes to 0 Nm—Positive • Steered right: Changes to 0 Nm—Negative
STR_TRQ_S_S	Nm	• Not steered: Near 0 Nm • Steered left: Changes to 0 Nm—Positive • Steered right: Changes to 0 Nm—Negative
VPWR	V	• Engine stopped: Approx. 12 V • Idling: Approx. 14 V
VSPD	KPH, MPH	• Vehicle stopped: 0 KPH, 0 MPH • Vehicle speed 20 km/h {12 mph}: 20 KPH, 12 MPH
YAW_RATE^*1	°/s	• Vehicle stopped: 0 °/s

PID name (definition)

Unit/Operation

Operation Status (Reference)

Mazda Modular Diagnostic System (M-MDS) display

CEN_TRQ_S

• Torque sensor neutral position: Near 0 Nm

ECU_IN_TMP

°C, °F

• Displays temperature of board in EPS control module: -40°C—+215°C {-40°F—419°F}

LAS_CUR

• Lane-keep assist system is not operated: 0 A

• Steered: Changes to positive or negative

ENG_RPM

RPM

• Engine stopped: 0 RPM

• Engine rotating at 3,000 RPM: 3,000 RPM

MT_CURRENT

• When not steered: Near 0 A

• Steered: Changes to positive or negative

OH_CR_C

Yes/No

• Overheat protection control (complete) is operating: Yes

• Overheat protection control (complete) is not operating: No

OH_CR_M

Yes/No

• Overheat protection control (middle) is operating: Yes

• Overheat protection control (middle) is not operating: No

OH_HIST_C

Yes/No

• Before overheat protection control (complete) has operated: Yes

• Before overheat protection control (complete) has not operated: No

OH_HIST_M

Yes/No

• Before overheat protection control (middle) has operated: Yes

• Before overheat protection control (middle) has not operated: No

OH_IG_CNT_C

—

• The number of times the ignition is switched ON during the period from when overheat protection control (complete) is finished to the time the next overheat protection control (complete) is started

― Displays a maximum number of 255 times in which the ignition is switched ON until the first overheat protection control (complete) is started.

― During overheat protection control (complete), the number of times the ignition is switched ON is not counted, and 0 is displayed.

OH_IG_CNT_M

—

• The number of times the ignition is switched ON during the period from when overheat protection control (middle) is finished to the time the next overheat protection control (middle) is started

― Displays a maximum number of 255 times in which the ignition is switched ON until the first overheat protection control (middle) is started.

― During overheat protection control (middle), the number of times the ignition is switched ON is not counted, and 0 is displayed.

STR_AB_EST

• Steering wheel in neutral position (not turned): 0°

• Steered left: Changes to 0°—Positive

• Steered right: Changes to 0°—Negative

Note

• The signal displayed in this item is a estimated absolute steering angle signal output.

STR_ANG

• Steering wheel position when ignition is switched ON (engine off or on): 0°

• Steered left: Changes to 0°—Positive

• Steered right: Changes to 0°—Negative

Note

• The signal displayed in this item is a steering angle (relative angle) signal.

STR_ROT_SPD

°/s

• Not steered: Near 0 °/s

• Steered: Changes according to steering speed

STR_TRQ_S_M

• Not steered: Near 0 Nm

• Steered left: Changes to 0 Nm—Positive

• Steered right: Changes to 0 Nm—Negative

STR_TRQ_S_S

• Not steered: Near 0 Nm

• Steered left: Changes to 0 Nm—Positive

• Steered right: Changes to 0 Nm—Negative

VPWR

• Engine stopped: Approx. 12 V

• Idling: Approx. 14 V

VSPD

KPH, MPH

• Vehicle stopped: 0 KPH, 0 MPH

• Vehicle speed 20 km/h {12 mph}: 20 KPH, 12 MPH

YAW_RATE^*1

°/s

• Vehicle stopped: 0 °/s

*1 :With lane-keep assist system

	External tester
On-board diagnostic (malfunction detection) function	Input/output: CAN_H (HS), CAN_L (HS)	Serial communication
PID/DATA monitor function	Input/output: CAN_H (HS), CAN_L (HS)	Serial communication

External tester

Mazda Modular Diagnostic System (M-MDS)

Connection

Communication method

On-board diagnostic (malfunction detection) function

Input/output: CAN_H (HS), CAN_L (HS)

Serial communication

PID/DATA monitor function

Input/output: CAN_H (HS), CAN_L (HS)

Serial communication

Diagnostic function name	Signal received	Signal sent
Malfunction detection function	DTC verification signal	Diagnostic trouble code
PID/DATA monitor function	Command signal to read selected monitor item	Monitored data for requested monitor item
