REFRIGERANT LINE

id071100002400

Purpose

• The system piping connects each related part of the refrigerant system.

Structure/Construction

• Block-type piping has been adopted to the pipe connection, improving the efficiency of piping related servicing.

• The pipes in the piping system consist of the following parts.

― Cooler hose (HI)

― Cooler hose (LO)

― Cooler pipe

• The pipes in the piping system are made of aluminum alloy and the hoses are made of rubber (flexible hose).

• A high-pressure charging valve is located on the cooler hose (HI) and a low-pressure charging valve is located on the cooler hose (LO).

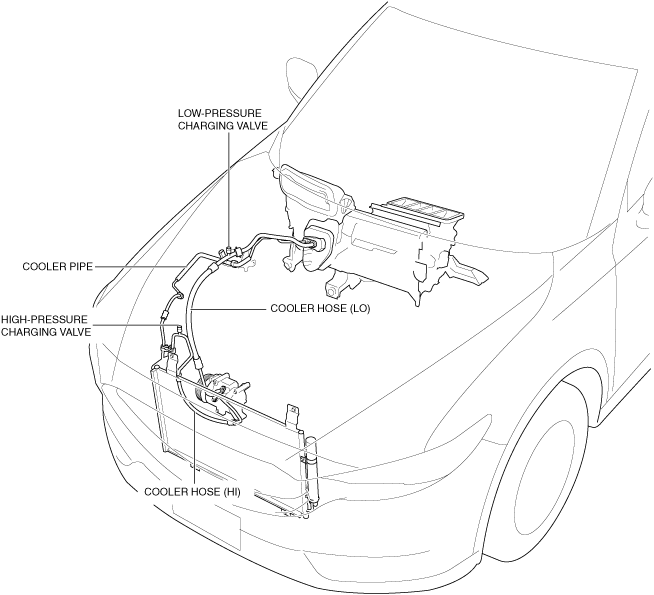

L.H.D. (SKYACTIV-G 2.0, SKYACTIV-G 2.5 (without cylinder deactivation), SKYACTIV-G 2.5 (with cylinder deactivation))

ac5wzn00003721

L.H.D. (SKYACTIV-D 2.2)

ac5wzn00003722

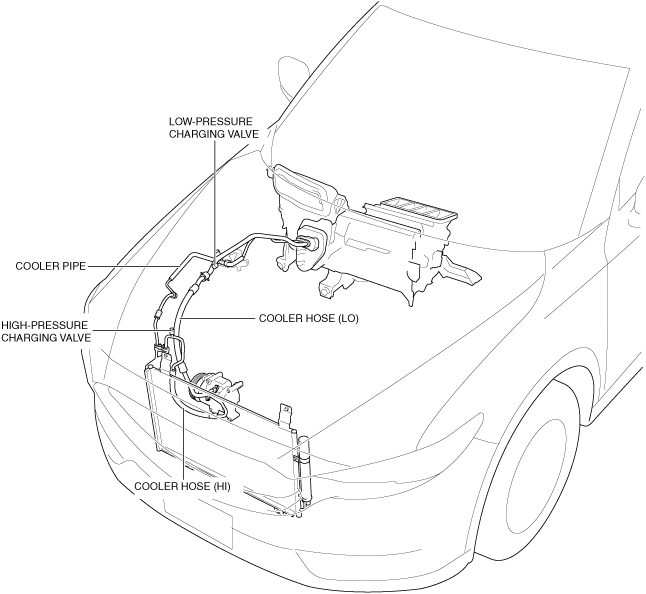

L.H.D. (SKYACTIV-G 2.5T)

ac5wzn00005177

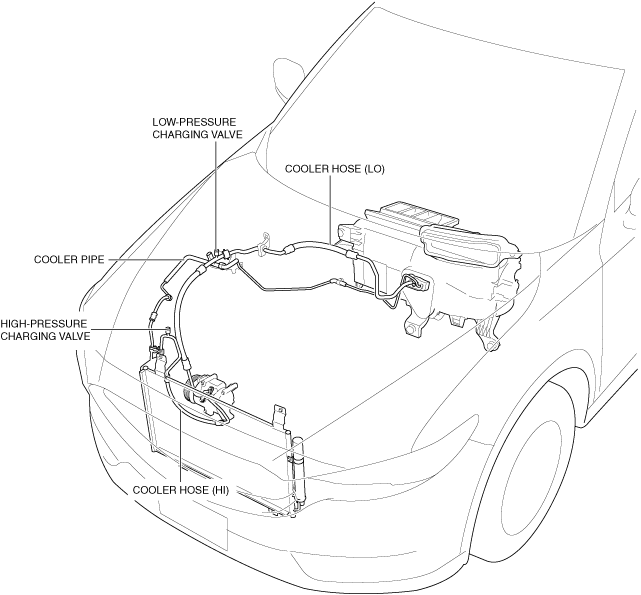

R.H.D. (SKYACTIV-G 2.0, SKYACTIV-G 2.5 (without cylinder deactivation), SKYACTIV-G 2.5 (with cylinder deactivation))

ac5wzn00003723

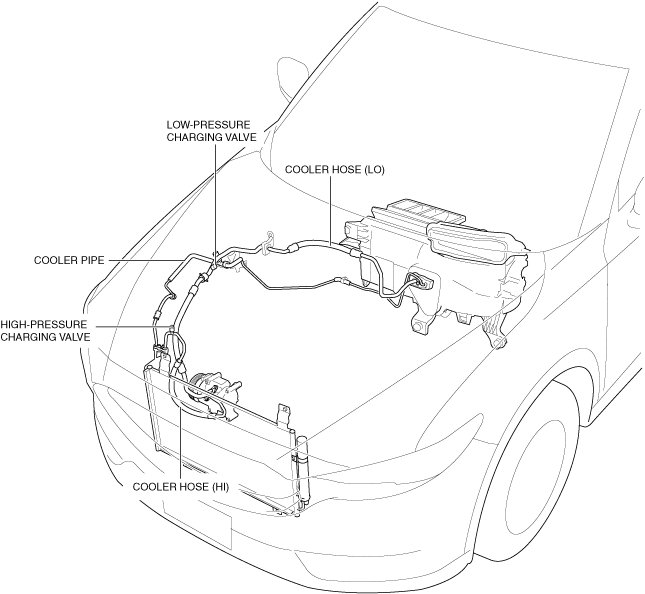

R.H.D. (SKYACTIV-D 2.2)

ac5wzn00003724

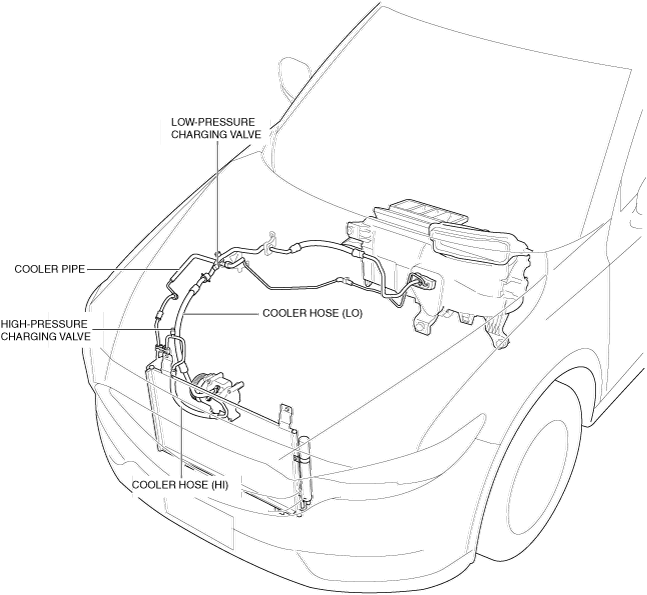

R.H.D. (SKYACTIV-G 2.5T)

ac5wzn00005178

Fail-safe

• Not applicable
