BLOWER MOTOR REMOVAL/INSTALLATION

id071100005900

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

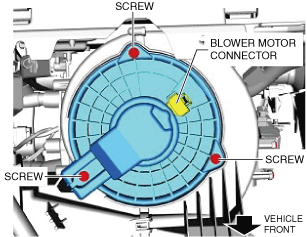

3.  Disconnect the blower motor connector.

ac5uuw00005178

4.  Remove the screws.

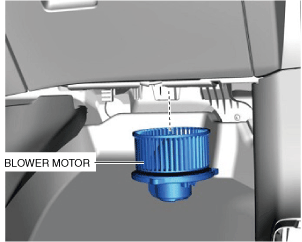

5.  Remove the blower motor.

ac5uuw00005179

6.  Install in the reverse order of removal.
