REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]

id071100803043

Replacement Part

O-ring (cooler hose (HI))

Quantity: 2

Location of use: Cooler hose (HI)
O-ring (cooler hose (LO))

Quantity: 2

Location of use: Cooler hose (LO)
O-ring (cooler pipe)

Quantity: 2

Location of use: Cooler pipe


L.H.D.


Cooler hose (HI)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.) (See REFRIGERANT CHARGING.)

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

4.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00013046

5.  Disconnect the cooler hose (HI). Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

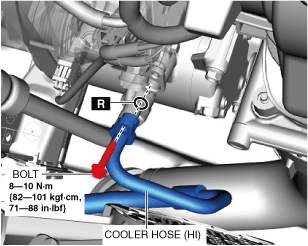

6.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00013047

7.  Remove the cooler hose (HI). Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

8.  Install in the reverse order of removal. (See Refrigerant line installation note (1).) (See Refrigerant line installation note (2).)

9.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)


Cooler hose (LO)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.) (See REFRIGERANT CHARGING.)

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

4.  Detach the clips.

ac5wzw00013048

5.  Remove the bolt.

6.  Disconnect the engine ground.

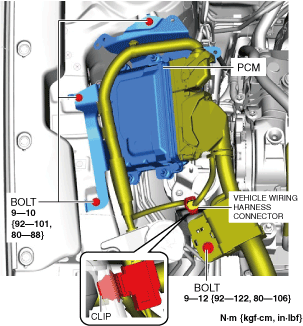

7.  Remove the clip for the vehicle wiring harness connector.

ac5wzw00013049

8.  Remove the bolts.

9.  Set the PCM out of the way.

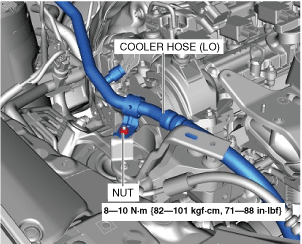

10.  Remove the nut.

ac5wzw00013050

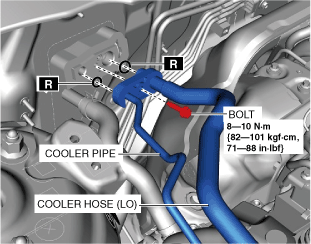

11.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00013051

12.  Disconnect the cooler hose (LO) and cooler pipe. Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

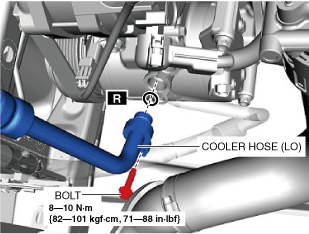

13.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00013052

14.  Disconnect the cooler hose (LO). Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

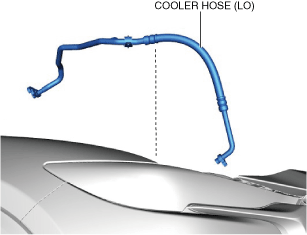

15.  Remove the cooler hose (LO). Do not allow compressor oil to spill.

ac5wzw00013053

16.  Install in the reverse order of removal. (See Refrigerant line installation note (1).) (See Refrigerant line installation note (2).)

17.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)


Cooler pipe

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.) (See REFRIGERANT CHARGING.)

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

4.  Detach the clips.

ac5wzw00013048

5.  Remove the bolt.

6.  Disconnect the engine ground.

7.  Remove the clip for the vehicle wiring harness connector.

ac5wzw00013049

8.  Remove the bolts.

9.  Set the PCM out of the way.

10.  Disconnect the refrigerant pressure sensor connector.

ac5wzw00013054

11.  Remove the nut.

12.  Remove the clip.

13.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00013051

14.  Disconnect the cooler pipe and cooler hose (LO). Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

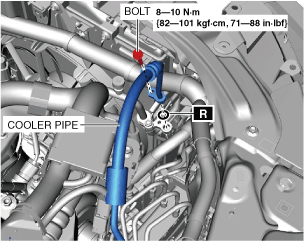

15.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00013055

16.  Disconnect the cooler pipe. Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

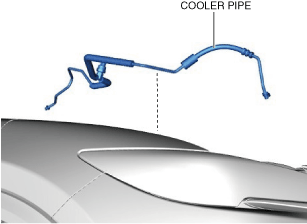

17.  Remove the cooler pipe. Do not allow compressor oil to spill.

ac5wzw00013056

18.  Install in the reverse order of removal. (See Refrigerant line installation note (1).) (See Refrigerant line installation note (2).)

19.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)


Refrigerant line removal note

Caution
•  When securing the block with pliers, wrap a clean cloth around the block. If the block is secured with pliers directly, it could be damaged.

1.  Disconnect the block joint type pipes by grasping the female side of the block with pliers or similar tool and holding firmly, then tighten the connection bolt or nut.

ac4ccw00002366


Refrigerant line installation note (1)

1.  Apply compressor oil to the O-rings and connect the joints.

2.  Tighten the joint bolt by hand.

Caution
•  When securing the block with pliers, wrap a clean cloth around the block. If the block is secured with pliers directly, it could be damaged.

3.  Connect the block joint type pipes by grasping the female side of the block with pliers or similar tool and holding firmly, then tighten the connection bolt or nut.

ac4ccw00002366


Refrigerant line installation note (2)

1.  After replacing the refrigerant line, add compressor oil to the refrigeration cycle.

Replaced refrigerant line

Supplemental compressor oil amount (approx. quantity)
Cooler Hose (HI)
1 ml {1 cc, 0.03 US fl oz}
Cooler Hose (LO)
3 ml {3 cc, 0.1 US fl oz}
Cooler Pipe (HI)
1 ml {1 cc, 0.03 US fl oz}


R.H.D.


Cooler hose (HI)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.) (See REFRIGERANT CHARGING.)

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

4.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00013046

5.  Disconnect the cooler hose (HI). Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

6.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00013047

7.  Remove the cooler hose (HI). Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

8.  Install in the reverse order of removal. (See Refrigerant line installation note (1).) (See Refrigerant line installation note (2).)

9.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)


Cooler hose (LO)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.) (See REFRIGERANT CHARGING.)

3.  Remove the following parts:

(1)  Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(2)  Front under cover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

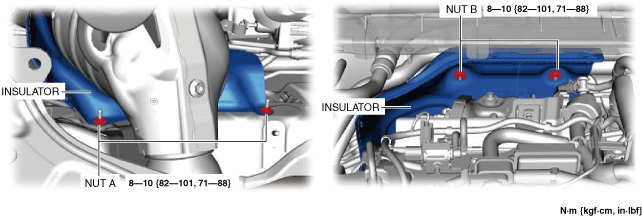

4.  Remove nuts A from underside of vehicle.

ac5wzw00013057

5.  Remove nuts B from top side of vehicle.

6.  Remove the insulator.

7.  Detach the clips.

ac5wzw00013048

8.  Remove the bolt.

9.  Disconnect the engine ground.

10.  Remove the clip for the vehicle wiring harness connector.

ac5wzw00013049

11.  Remove the bolts.

12.  Set the PCM out of the way.

13.  Remove the nut.

ac5wzw00013058

14.  Remove the cooler hose (LO) from the clip.

15.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00013059

16.  Disconnect the cooler hose (LO) and cooler pipe. Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

17.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00013052

18.  Disconnect the cooler hose (LO). Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

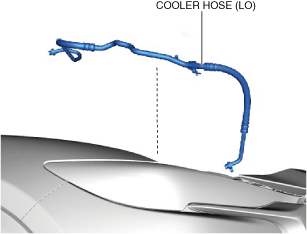

19.  Remove the cooler hose (LO). Do not allow compressor oil to spill.

ac5wzw00013060

20.  Install in the reverse order of removal. (See Refrigerant line installation note (1).) (See Refrigerant line installation note (2).)

21.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)


Cooler pipe

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Discharge the refrigerant. (See REFRIGERANT RECOVERY.) (See REFRIGERANT CHARGING.)

3.  Remove the following parts:

(1)  Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
(2)  Front under cover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

4.  Remove nuts A from underside of vehicle.

ac5wzw00013057

5.  Remove nuts B from top side of vehicle.

6.  Remove the insulator.

7.  Detach the clips.

ac5wzw00013048

8.  Remove the bolt.

9.  Disconnect the engine ground.

10.  Remove the clip for the vehicle wiring harness connector.

ac5wzw00013049

11.  Remove the bolts.

12.  Set the PCM out of the way.

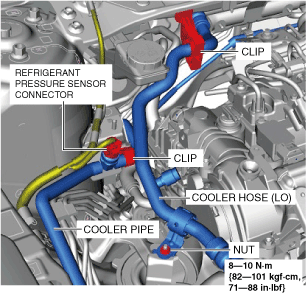

13.  Disconnect the refrigerant pressure sensor connector.

ac5wzw00013061

14.  Remove the nut.

15.  Remove the clips.

16.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00013059

17.  Disconnect the cooler pipe and cooler hose (LO). Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

18.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00013052

19.  Disconnect the cooler hose (LO). Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

20.  Remove the cooler hose (LO). Do not allow compressor oil to spill.

ac5wzw00013060

21.  Disconnect the vacuum hose.

ac5wzw00013062

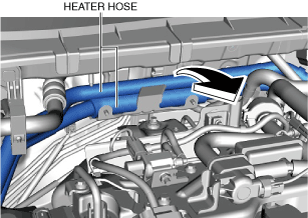

22.  Set the heater hose out of the way as shown in the figure.

ac5wzw00013063

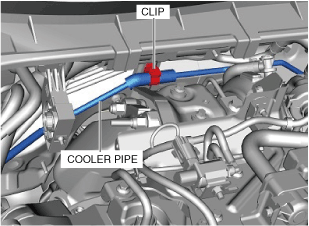

23.  Remove the clip.

ac5wzw00013064

24.  Remove the bolt. (See Refrigerant line removal note.)

ac5wzw00013055

25.  Disconnect the cooler pipe. Do not allow compressor oil to spill.

Caution
•  If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign matter out of the cycle.

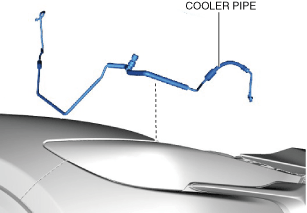

26.  Remove the cooler pipe. Do not allow compressor oil to spill.

ac5wzw00013065

27.  Install in the reverse order of removal. (See Refrigerant line installation note (1).) (See Refrigerant line installation note (2).)

28.  Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST.)


Refrigerant line removal note

Caution
•  When securing the block with pliers, wrap a clean cloth around the block. If the block is secured with pliers directly, it could be damaged.

1.  Disconnect the block joint type pipes by grasping the female side of the block with pliers or similar tool and holding firmly, then tighten the connection bolt or nut.

ac4ccw00002366


Refrigerant line installation note (1)

1.  Apply compressor oil to the O-rings and connect the joints.

2.  Tighten the joint bolt by hand.

Caution
•  When securing the block with pliers, wrap a clean cloth around the block. If the block is secured with pliers directly, it could be damaged.

3.  Connect the block joint type pipes by grasping the female side of the block with pliers or similar tool and holding firmly, then tighten the connection bolt or nut.

ac4ccw00002366


Refrigerant line installation note (2)

1.  After replacing the refrigerant line, add compressor oil to the refrigeration cycle.

Replaced refrigerant line

Supplemental compressor oil amount (approx. quantity)
Cooler Hose (HI)
1 ml {1 cc, 0.03 US fl oz}
Cooler Hose (LO)
3 ml {3 cc, 0.1 US fl oz}
Cooler Pipe (HI)
1 ml {1 cc, 0.03 US fl oz}
