HEATER HOSE REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0711008051k5

L.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-D 2.2].)

3.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

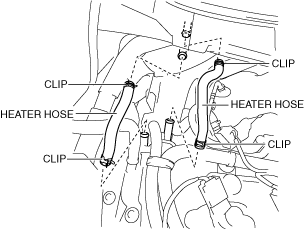

4.  Remove the heater hose.

ac5wzw00008834

5.  Install in the reverse order of the removal.

6.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-D 2.2].)

R.H.D.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-D 2.2].)

3.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

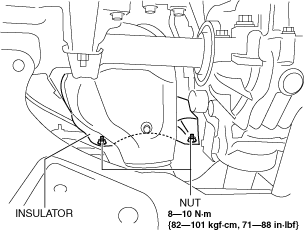

4.  Remove the nuts.

ac5wzw00008835

5.  Remove the nuts.

ac5wzw00008836

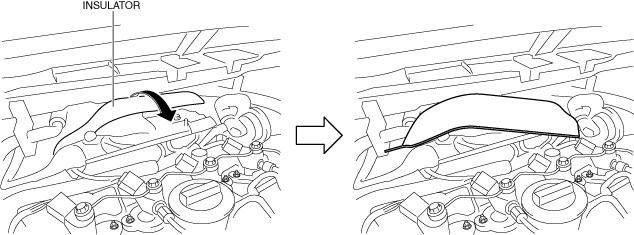

6.  Remove the insulator as shown in the figure.

ac5wzw00001949

7.  Detach the clip.

ac5wzw00008837

8.  Remove the bolt.

9.  Disconnect the engine ground.

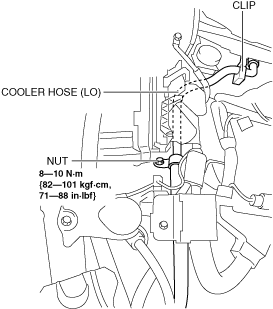

10.  Remove the cooler hose (LO) from the clip.

ac5wzw00008838

11.  Remove the nut.

12.  Set the cooler hose (LO) out of the way.

ac5wzw00001952

Caution

•  When setting the cooler hose (LO), only bend the flexible hose part. If force is applied to areas other than the flexible hose, the pipe will bend and could be damaged.

13.  Remove the heater hose.

ac5wzw00008839

14.  Install in the reverse order of the removal.

15.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-D 2.2].)
