AIR MIX ACTUATOR [MANUAL AIR CONDITIONER]

id0740a2005500

Purpose

• The air mix actuator moves the air mix door in the A/C unit to adjust the temperature of the air blown from the air vent.

Function

Door open/close function

• The air mix actuator drives the motor based on the signals from the climate control unit and moves the air mix door in the HOT or COLD direction.

Door position detection function

• The air mix actuator detects the change in the air mix door position using the potentiometer in conjunction with the motor drive, and gives feedback to the climate control unit based on electric signals.

Structure/Construction

• A potentiometer-type air mix actuator has been adopted.

• The air mix actuator is located on the passenger’s side of the A/C unit.

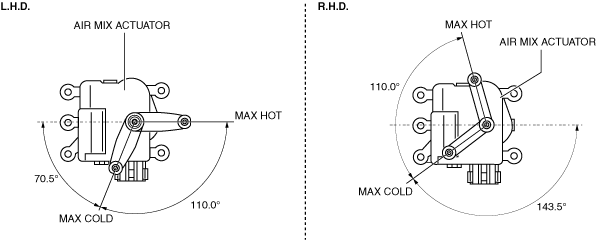

• The operation range of the air mix actuator is as indicated in the diagram.

ac5wzn00003755

Operation

• For the air mix actuator operation, refer to the [MANUAL AIR CONDITIONING SYSTEM [MANUAL AIR CONDITIONER]]. (See MANUAL AIR CONDITIONER SYSTEM [MANUAL AIR CONDITIONER].)

Fail-safe

• Not applicable
