•  The air intake actuator moves the air intake door in the blower unit to switch the air intake port.

•  The door open/close function opens/closes the air intake door in the FRESH or RECIRCULATE positions.

•  The door position detection function fluctuates the potentiometer voltage value which is linked to the air intake actuator motor drive.

•  A potentiometer-type air intake actuator has been adopted.

•  The air intake actuator is located on the blower unit.

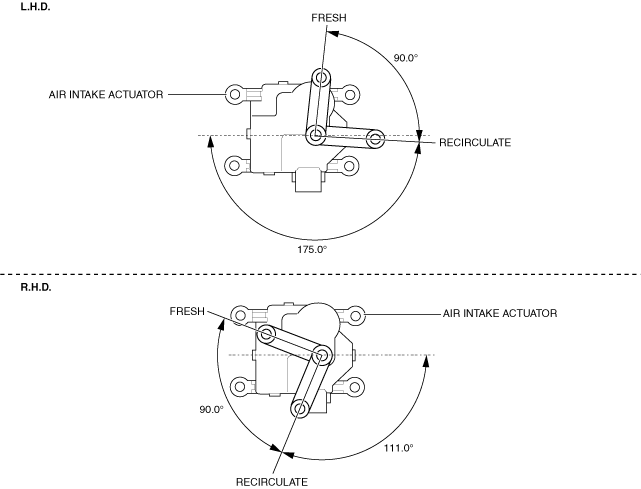

•  The operation range of the air intake actuator is as indicated in the diagram.

ac5wzn00003756

•  For the air intake actuator operation, refer to the [MANUAL AIR CONDITIONING SYSTEM [MANUAL AIR CONDITIONER]]. (See MANUAL AIR CONDITIONER SYSTEM [MANUAL AIR CONDITIONER].)
