AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER]


id0740a2803200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

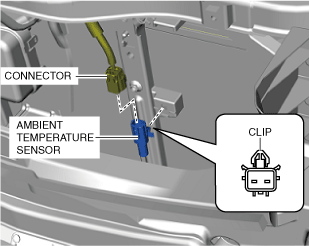

3.  Disconnect the connector.

ac5uuw00005242

4.  Detach the clip and remove the ambient temperature sensor.

5.  Install in the reverse order of removal.

6.  Perform the 360°view monitor system aiming. (With 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)
