CRASH ZONE SENSOR [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

id0810b1511300

Purpose

• The crash zone sensor detects an impact during a frontal or frontal offset collision to the vehicle.

Function

• The crash zone sensor converts the detected impact to an electrical signal.

Structure/Construction

• The crash sensor is built into the crash zone sensor.

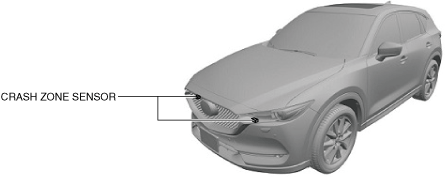

• The crash zone sensor is located on the shroud panel on the back side of the front bumper.

• Two crash zone sensors are installed for independent impact detection on the left and right.

ac5wzn00003773

Operation

• For the crash zone sensor operation, refer to the [AIR BAG SYSTEM [TWO-STEP DEPLOYMENT CONTROL SYSTEM]]. (See AIR BAG SYSTEM [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

Fail-safe

• Not applicable
