CLOCK SPRING ADJUSTMENT [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

id0810b1802100

1.  Set the front wheels straight ahead.

Caution

•  The clock spring will break if over-wound. Do not forcibly turn the clock spring.

2.  Turn the clock spring clockwise until it stops.

ac9uuw00009016

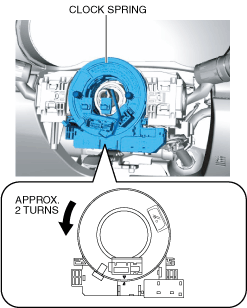

3.  From the stopped position, turn the clock spring counterclockwise approx. 2 turns.

ac9uuw00009017

4.  Align the mark on the clock spring with the mark on the outer housing.

ac9uuw00009018

ac9uuw00009019

Note

•  After adjusting the alignment marks, the guides can be verified in the viewing slots shown in the figure.
