DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

id0810b1808000

Warning

• Handling the driver-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the driver-side air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

• Due to the adoption of 2-step deployment control in the driver-side air bag module, depending on the impact force, it is possible that inflator No.2 might not deploy. In such cases, before disposing of the air bag module, make sure to follow the inflator deployment procedures and verify complete deployment of inflators No.1 and 2.

Note

• The driver-side air bag module is installed to the steering wheel by the following connections.

― Driver-side air bag module tab A and steering wheel hook A

― Driver-side air bag module tab B and steering wheel hook B

― Driver-side air bag module tab C and steering wheel hook C

― Omega spring and steering wheel hook D

― Omega spring and steering wheel hook E

am3uuw00013959

With Heated Steering Wheel System

Note

• When removing the driver-side air bag module, it is necessary to rotate the steering wheel. If the ignition has been switched off with the driver's door closed, the steering wheel will be locked. Perform the procedure from Steps 1-3 so that the steering wheel will not be locked.

1. Switch the ignition ON (engine off or on).

2. Open the driver's door.

3. Switch the ignition off.

4. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

5. Lower the steering wheel to the bottommost position.

6. Pull the steering wheel to furthest position rearward.

7. Rotate the steering wheel until the service hole can be seen from behind the steering wheel.

am3uuw00013960

8. Insert the tool in to the service hole.

am3uuw00013961

Recommended tool

• TORX driver (T30 (diam. 6))

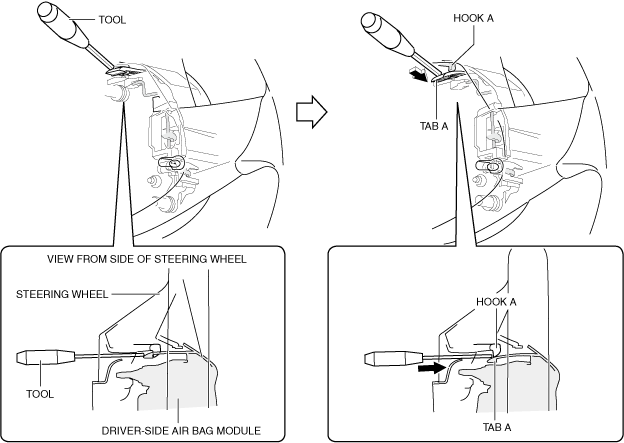

9. Move the tool in the direction of the arrow shown in the figure and disengage driver-side air bag module tab A from steering wheel hook A.

ac5wzw00010469

10. Rotate the steering wheel until the service hole can be seen from behind the steering wheel.

am3uuw00013963

11. Insert the tool in to the service hole.

am3uuw00013964

12. Move the tool in the direction of the arrow shown in the figure and disengage driver-side air bag module tab B from steering wheel hook B.

Note

• By moving the tool, the omega spring is pressed at the same time allowing the omega spring to be removed from steering wheel hook D.

am3uuw00013965

13. Rotate the steering wheel until the service hole can be seen from behind the steering wheel.

am3uuw00013966

14. Insert the tool in to the service hole.

am3uuw00013967

Caution

• The driver-side air bag module could be damaged if it is dropped while it is completely disengaged from the steering wheel. Hold the driver-side air bag module securely with a hand while it is completely disengaged.

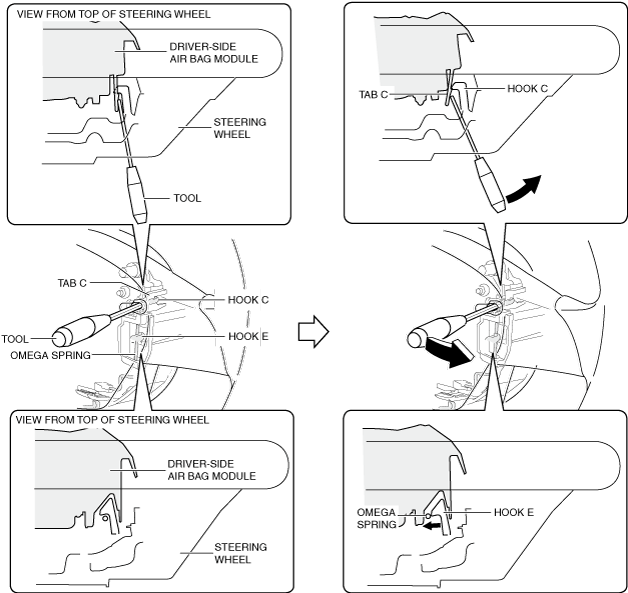

15. Move the tool in the direction of the arrow shown in the figure and disengage driver-side air bag module tab C from steering wheel hook C.

Note

• By moving the tool, the omega spring is pressed at the same time allowing the omega spring to be removed from steering wheel hook E.

am3uuw00013968

16. Remove the air bag module from the steering wheel.

17. Using a flathead screwdriver, lift the locking device carefully, however do not remove it.

am3uuw00013969

18. Disconnect the air bag module connectors.

19. Disconnect the horn switch connector.

20. Remove the driver-side air bag module.

Without Heated Steering Wheel System

Note

1. Switch the ignition ON (engine off or on).

2. Open the driver's door.

3. Switch the ignition off.

4. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

5. Lower the steering wheel to the bottommost position.

6. Pull the steering wheel to furthest position rearward.

7. Verify the service hole on the back side of the steering wheel.

am3uuw00012331

8. Insert the tool in to the service hole.

am3uuw00013970

Recommended tool

• TORX driver (T30 (diam. 6))

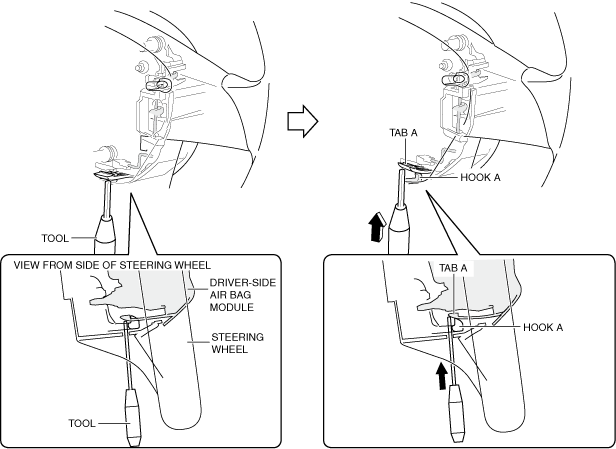

9. Move the tool in the direction of the arrow shown in the figure and disengage driver-side air bag module tab A from steering wheel hook A.

am3uuw00013971

10. Rotate the steering wheel until the service hole can be seen from behind the steering wheel.

am3uuw00013972

11. Insert the tool in to the service hole.

am3uuw00013973

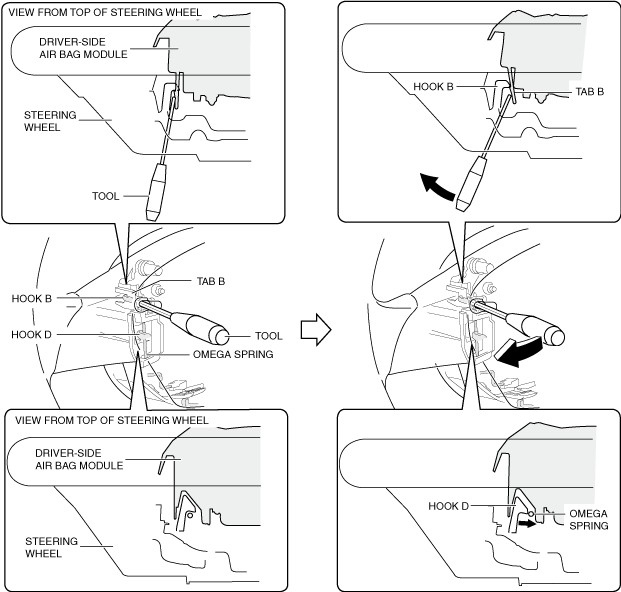

12. Move the tool in the direction of the arrow shown in the figure and disengage driver-side air bag module tab B from steering wheel hook B.

Note

• By moving the tool, the omega spring is pressed at the same time allowing the omega spring to be removed from steering wheel hook D.

am3uuw00013974

13. Rotate the steering wheel until the service hole can be seen from behind the steering wheel.

am3uuw00013975

14. Insert the tool in to the service hole.

am3uuw00013976

Caution

15. Move the tool in the direction of the arrow shown in the figure and disengage driver-side air bag module tab C from steering wheel hook C.

Note

• By moving the tool, the omega spring is pressed at the same time allowing the omega spring to be removed from steering wheel hook E.

am3uuw00013977

16. Remove the air bag module from the steering wheel.

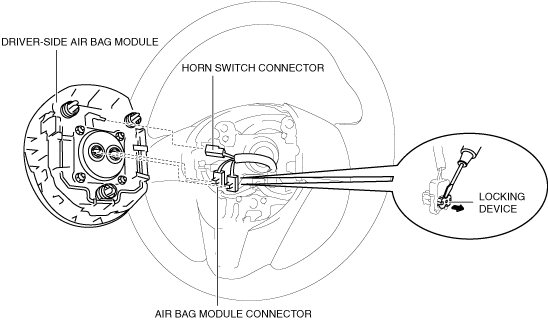

17. Using a flathead screwdriver, lift the locking device carefully, however do not remove it.

am3uuw00013978

18. Disconnect the air bag module connectors.

19. Disconnect the horn switch connector.

20. Remove the driver-side air bag module.
