PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM]

id0810b2801900

Warning

•  Handling the passenger-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the passenger-side air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM].)

Note

•  When replacing the passenger-side air bag module after the deployment, replace it together with the mid-wiring harness.

1.  Switch the ignition to off.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

4.  Using a flathead screwdriver, lift the locking device carefully, however do not remove it.

ac5uuw00005696

5.  Disconnect the connector.

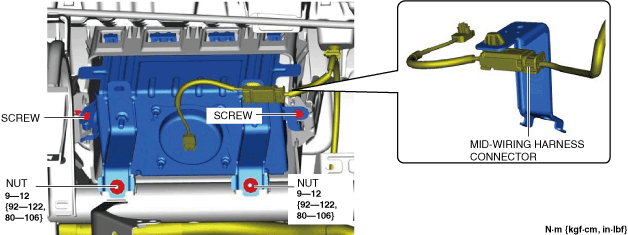

6.  Disconnect the mid-wiring harness connector. (See Mid-wiring Harness Connector Disconnect Note.)

ac5uuw00005697

7.  Remove the screws.

8.  Remove the nuts.

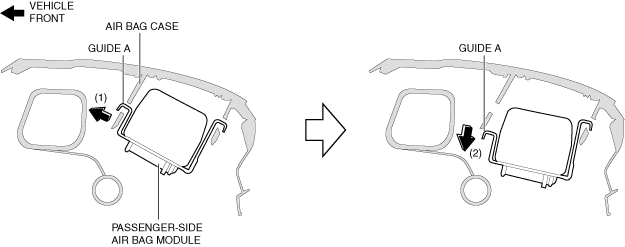

9.  Move the passenger-side air bag module in the direction of arrow (2) shown in the figure and detach guides A from the air bag case while spreading the air bag case in the direction of arrow (1).

ac5uuw00005699

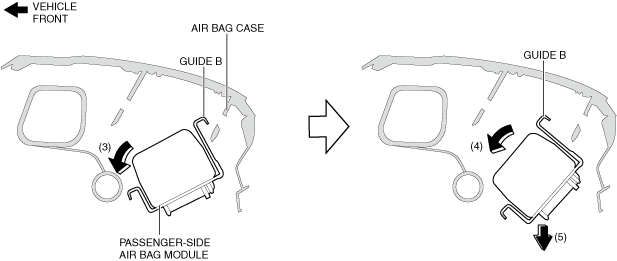

10.  Move the passenger-side air bag module in the direction of the arrow (3), (4) and detach guides B from the air bag case.

ac5uuw00005700

11.  Move the passenger-side air bag module in the direction of the arrow (5), and remove the passenger-side air bag module.

12.  Install in the reverse order of removal.

13.  Switch the ignition ON (engine off or on).

14.  Verify that the air bag/seat belt pre-tensioner system warning light illuminates for approx. 6 s and turns off.

•  If the air bag/seat belt pre-tensioner system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (See FLOWCHART [SAS CONTROL MODULE (STANDARD DEPLOYMENT CONTROL SYSTEM)].)

Mid-wiring Harness Connector Disconnect Note

1.  Pull out the mid-wiring harness connector lock lever in the direction of arrow (1) shown in the figure.

ac5uuw00005701

2.  Move the mid-wiring harness connector in the direction of arrow (2) shown in the figure to disconnect it.
