SEAL BOARD UPPER REMOVAL/INSTALLATION

id091000466600

1.  Remove the fasteners.

ac5wzw00011083

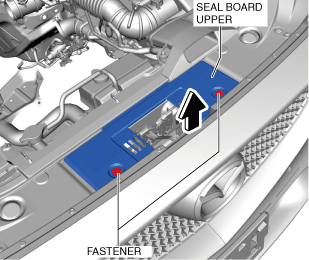

2.  Remove the seal board upper in the direction of the arrow shown in the figure.

3.  Install in the reverse order of removal.
