REAR OVER FENDER REMOVAL/INSTALLATION

id091000878800

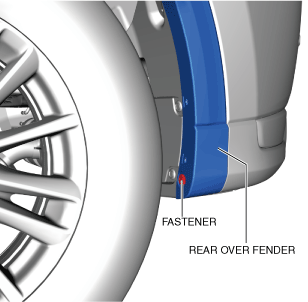

1.  Remove the fastener.

ac5wzw00011146

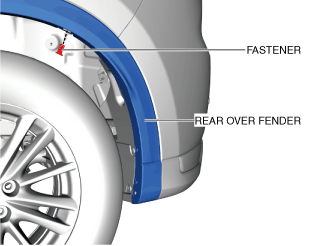

2.  Remove the fastener.

ac5wzw00011147

3.  Remove the tab.

ac5wzw00011148

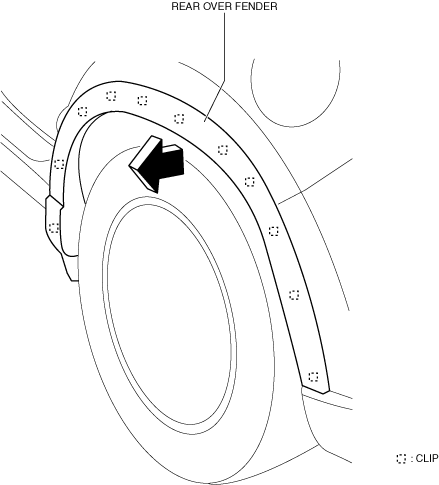

4.  Pull the rear over fender in the direction of the arrow shown in the figure and remove it.

ac5wzw00011149

5.  Install in the reverse order of removal.

Warning

•  When installing the rear over fender, verify that clips are not damaged, if they are damaged, replace them with new ones. Otherwise, the rear over fender may fall off while the vehicle is being driven, leading to a serious accident.
