POWER LIFTGATE (PLG) CONTROL MODULE

id091100010800


Purpose

•  The power liftgate (PLG) control module controls the power liftgate (PLG) system based on the following information.
―  Power liftgate (PLG) front switch operation signal
―  Power liftgate (PLG) rear switch operation signal
―  Liftgate opener switch operation signal
―  Remote transmitter operation signal
―  Signal from power liftgate (PLG) drive unit
―  Signal from power liftgate (PLG) touch sensor

Functions

•  When the power liftgate (PLG) control module receives an operation signal from each switch, it sends a liftgate open/close signal to the power liftgate (PLG) drive unit.
•  The power liftgate (PLG) control module detects the liftgate operation condition based on the pulse from the power liftgate (PLG) drive unit.

Structure/Construction

•  The power liftgate (PLG) control module is located in the trunk side trim.
ac5uun00002993

Operation

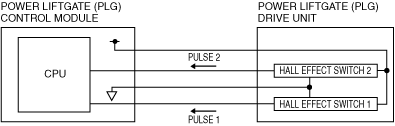

•  The power liftgate (PLG) control module detects the motor rotation speed and rotation direction based on the pulse from the power liftgate (PLG) drive unit.
ac9uun00001618

Fail-safe

DTC

Fail-safe
B113E:12
Stops the power liftgate (PLG) system operation.
B126A:62
B12E8:12
B1308:11
B144D:29
B144D:64
B144D:95
B144E:29
B144E:64
B144E:95
B144F:11
B144F:13
B144F:19
B144F:62
B144F:79
B1451:02
B1453:02
B1453:62
B1454:13
B1454:23
B1455:13
B1455:23
U0001:88
U0100:00
U0101:00
U0155:00
U0214:00
U2100:56
U2300:54
U2300:55
U2300:56
U3000:49
U3003:16
U3003:17
U3006:13
U300A:62
