POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION

id091200002000

Note

•  The power outer mirror switch is integrated with the power window main switch.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

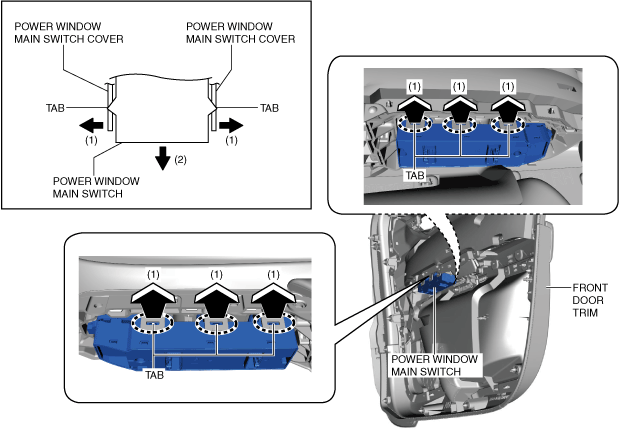

3.  Move the power window main switch cover end in the directions of arrows (1) shown in the figure using a remover tool, and detach the tabs from the power window main switch cover.

ac5wzw00012961

4.  Remove the power window main switch in the direction of arrow (2) shown in the figure.

5.  Install in the reverse order of removal.
