REARVIEW MIRROR REMOVAL/INSTALLATION

id091200009200

1.  Remove the sensor cover. (with sensor cover) (See SENSOR COVER REMOVAL/INSTALLATION.)

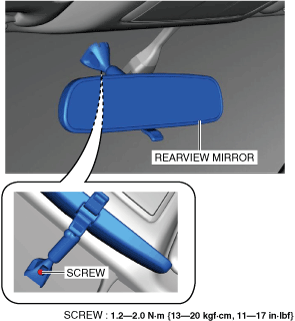

2.  Loosen the screw.

ac5wzw00012964

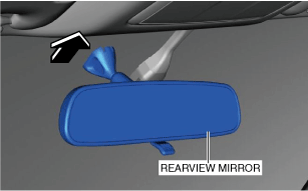

3.  Pull the rearview mirror in the direction of the arrow shown in the figure.

ac5uuw00005772

4.  Install in the reverse order of removal.
