POWER SEAT SYSTEM

id091300262000


Outline

•  The power seat system drives the electric motor, operates the front seats safely, and changes the driving posture to suit the occupant by operating the power seat switch.
•  10WAY power seats have been adopted on the driver's seat.
•  6WAY power seats have been adopted on the front passenger’s seat.

Function

•  The 10WAY power seats are equipped with the following functions:
―  Slide mechanism
―  Recliner mechanism
―  Lift mechanism
―  Tilt mechanism
―  Lumbar support mechanism
•  The 6WAY power seats are equipped with the following functions:
―  Slide mechanism
―  Recliner mechanism
―  Lift mechanism

Slide mechanism

•  The sliding function adjusts the front and back positions of the front seats.
am6xun00002446


Recliner mechanism

•  The recliner function adjusts the angle of the front seat backs.
am6xun00002447


Tilt mechanism

•  The tilt function adjusts the height of the front part of the front seat cushions.
am6xun00002448


Lift mechanism

•  The lift function adjusts the height of the front seats.
am6xun00002449


Lumbar support mechanism

•  The lumbar support function adjusts the bulge amount of the lumbar area of the front seat backs.
am6xun00002450

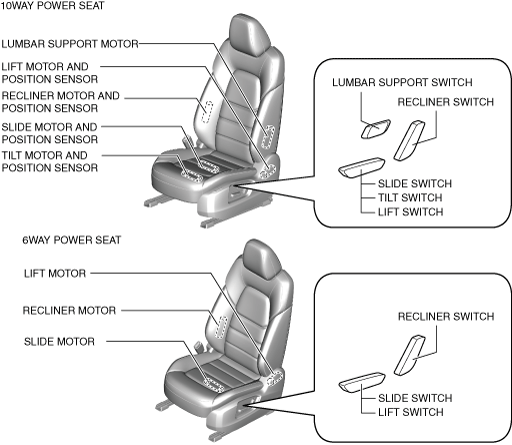

Structural View

ac5uun00002888

System Diagram

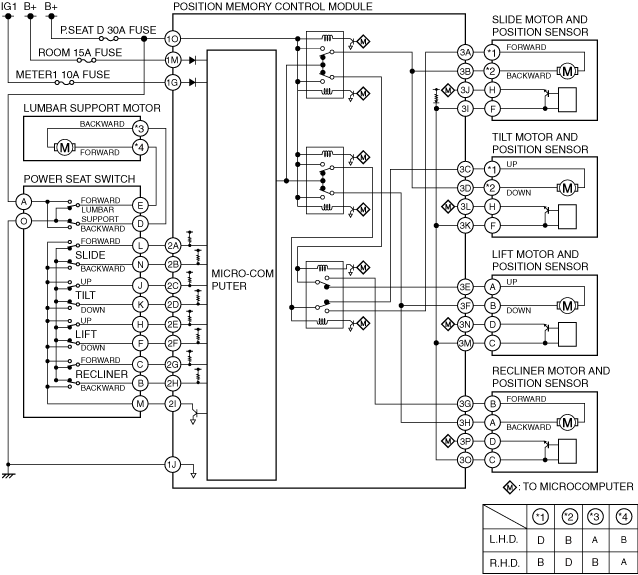

10WAY power seat (With position memory system)

ac5wzn00005407


10WAY power seat (Without position memory system)

ac5wzn00005318

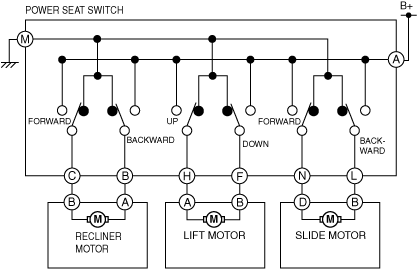

6WAY power seat

ac5wzn00004352


Operation


Recliner operation (example: forward recline operation)

With position memory system

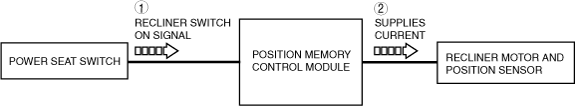

1.  When the recliner switch of the power seat switch is operated forward, the recliner switch on signal is input to the position memory control module.
2.  When the position memory control module receives the recliner switch on signal, power is supplied to the recliner motor and position sensor.
3.  When current flows to the recliner motor for forward motion, the motor drives to tilt the front seat back forward.
am6zzn00002886

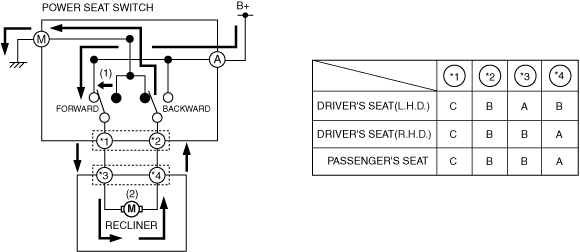

Without position memory system
1.  When the recliner switch is operated (1) forward, current from the battery flows (2) to the recliner motor.
2.  When current flows to the recliner motor for forward motion, the motor drives to tilt the front seat back forward.
ac5wzn00005319


Lift operation (example: lift up operation)

With position memory system

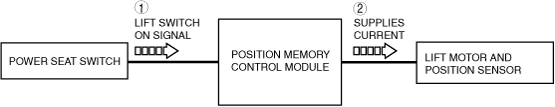

1.  When the lift switch of the power seat switch is operated up, the lift switch on signal is input to the position memory control module.
2.  When the position memory control module receives the lift switch on signal, power is supplied to the lift motor and position sensor.
3.  When current flows to the lift motor for lift-up motion, the motor drives to set the position of the front seat higher.
am6zzn00002888
Without position memory system
1.  When the lift switch is operated (1) in the lift-up direction, current from the battery flows (2) to the lift motor.
2.  When current flows to the lift motor for lift-up motion, the motor drives to set the position of the front seat higher.
ac5wzn00005320


Slide operation (example: forward slide operation)

With position memory system

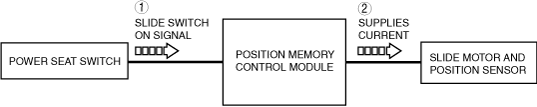

1.  When the slide switch of the power seat switch is operated forward, the slide switch on signal is input to the position memory control module.
2.  When the position memory control module receives the slide switch on signal, power is supplied to the slide motor and position sensor.
3.  When current flows to the slide motor and position sensor for forward motion, the motor drives to slide the front seat forward.
am6zzn00002889
Without position memory system
1.  When the sliding switch is operated (1) forward, current from the battery flows (2) to the sliding motor.
2.  When current flows to the recliner motor for forward motion, the motor drives to tilt the front seat back forward.
ac5wzn00005321


Tilt operation (example: tilt up operation)

With position memory system
1.  When the tilt switch of the power seat switch is operated up, the tilt switch on signal is input to the position memory control module.
2.  When the position memory control module receives the tilt switch on signal, power is supplied to the tilt motor and position sensor.
3.  When current flows to the tilt motor and position sensor for tilt-up motion, the motor drives to set the position of the front part of the front seat cushion higher.
am6zzn00002891
Without position memory system
1.  When the tilt switch is operated (1) in the tilt-up direction, current from the battery flows (2) to the tilt motor.
2.  When current flows to the tilt motor for tilt-up motion, the motor drives to set the position of the front part of the front seat cushion higher.
ac5wzn00005322

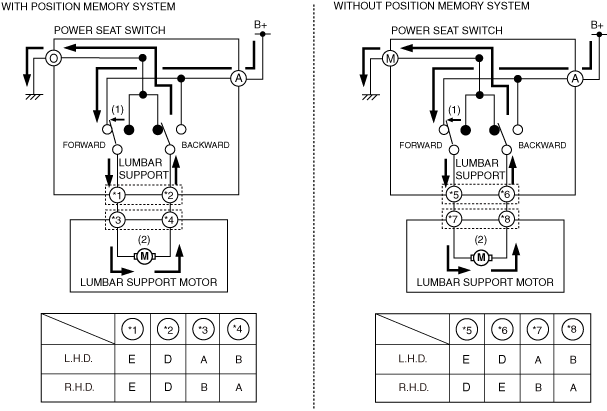

Lumbar support operation (example: forward operation)

1.  When the lumbar support switch is operated (1) forward, current from the battery flows (2) to the lumbar support motor.
2.  When current flows to the lumbar support motor for forward motion, the motor drives to set the bulge amount of the lumbar area of the front seat back.
ac5wzn00005323


Fail-safe

•  Function not equipped.
