REAR SEAT WARMER CONTROL UNIT REMOVAL/INSTALLATION
id091300701800
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Fold the rear seat back.
3. Partially peel back the trunk mat.
4. Disconnect the connector.

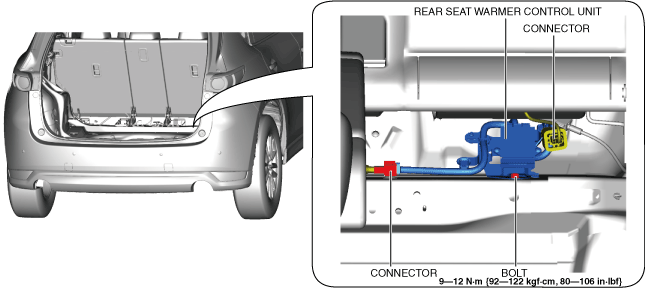

ac5uuw00007305
|
5. Remove the bolt.
6. Remove the rear seat warmer control unit.
7. Install in the reverse order of removal.
