REAR SEAT WARMER UNIT INSPECTION

id091300702200

Simple Inspection

1.  Place a cooling agent on the seat cushion (thermistor).

ac5wzw00012833

2.  Operate the seat warmer switch to turn on the seat warmer.

3.  Touch the seat cushion and the seat back to verify a temperature increase.

4.  If a temperature increase cannot be verified, go to the resistance inspection. (See Resistance Inspection.)

Resistance Inspection

LH-side

Seat cushion side

1.  Switch the ignition to off.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Disconnect the rear seat warmer unit (LH) connector.

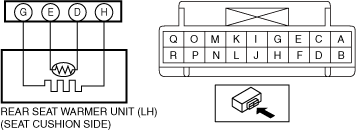

4.  Inspect for continuity between the rear seat warmer unit (LH) connector terminal G and H.

ac5wzw00012834

ac5wzw00011237

―  If not as specified, replace the rear seat cushion pad. (See REAR SEAT CUSHION TRIM REMOVAL/INSTALLATION.)

5.  Measure the resistance between the rear seat warmer unit (LH) connector terminal E and D, and verify that the condition is as indicated in the table.

am6ccw00000455

•  If the thermistor characteristic is not as shown in the graph, replace the rear seat cushion pad. (See REAR SEAT CUSHION TRIM REMOVAL/INSTALLATION.)

Seat back side

1.  Switch the ignition to off.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Disconnect the rear seat warmer unit (LH) connector.

4.  Inspect for continuity between the rear seat warmer unit (LH) connector (short cord) terminal A and B.

ac5wzw00012835

―  If not as specified, replace the rear seat back pad. (See REAR SEAT BACK TRIM REMOVAL/INSTALLATION.)

ac5wzw00010287

RH-side

Seat cushion side

1.  Switch the ignition to off.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Disconnect the rear seat warmer unit (RH) connector.

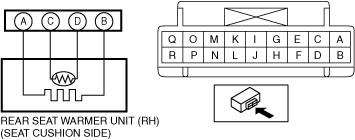

4.  Inspect for continuity between the rear seat warmer unit (RH) connector (short cord) terminal A and B.

ac5wzw00012836

ac5wzw00011239

―  If not as specified, replace the rear seat cushion pad. (See REAR SEAT CUSHION TRIM REMOVAL/INSTALLATION.)

5.  Measure the resistance between the rear seat warmer unit (RH) connector terminal C and D, and verify that the condition is as indicated in the table.

am6ccw00000455

•  If the thermistor characteristic is not as shown in the graph, replace the rear seat cushion pad. (See REAR SEAT CUSHION TRIM REMOVAL/INSTALLATION.)

Seat back side

1.  Switch the ignition to off.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Disconnect the rear seat warmer unit (RH) connector.

4.  Inspect for continuity between the rear seat warmer unit (RH) connector (short cord) terminal A and B.

ac5wzw00012837

―  If not as specified, replace the rear seat back pad. (See REAR SEAT BACK TRIM REMOVAL/INSTALLATION.)

ac5wzw00010287
