REAR SEAT CUSHION REMOVAL/INSTALLATION

id091300912600

Caution

•  When performing the procedure with a rear seat cushion removed from the vehicle, perform the procedure on a clean cloth so as not to damage or dirty the seat.

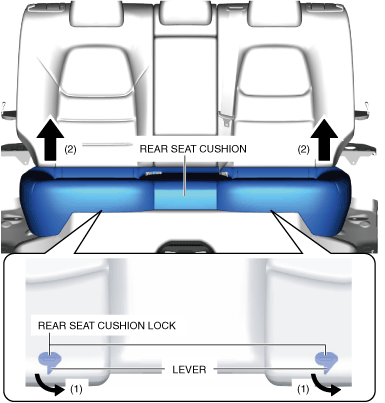

1.  While moving the rear seat cushion lock levers in the direction of arrows (1) shown in the figure, lift up the rear seat cushion in the direction of arrows (2) and detach the rear seat cushion from the rear seat cushion lock.

atrkjt00000112

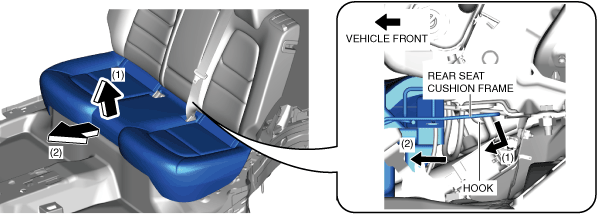

2.  While pulling the rear seat cushion up in the direction of the arrow (1) shown in the figure, move it in the direction of arrow (2) and detach the rear seat cushion from the hook.

ac5jjw00007898

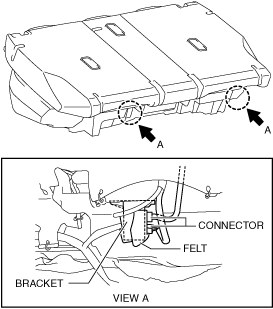

3.  Remove the felt. (with felt)

ac5wzw00013980

Note

•  When installing the connectors to the rear seat, the felt do not need to be reinstalled.

4.  Remove the connector from the bracket.(with rear seat warmer system)

5.  Disconnect the rear seat warmer connectors.(with rear seat warmer system)

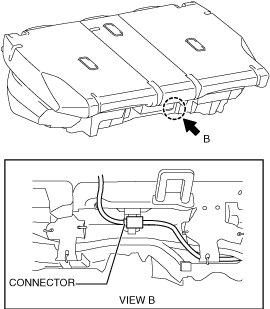

6.  Disconnect the USB power outlet connector.(with USB power outlet)

ac5uuw00008024

7.  Remove the rear seat cushion.

8.  Install in the reverse order of removal.
