FRONT SEAT CUSHION FRAME/ADJUSTER UNIT DISASSEMBLY/ASSEMBLY

id091300955400

1.  Disassemble in the order indicated in the table.

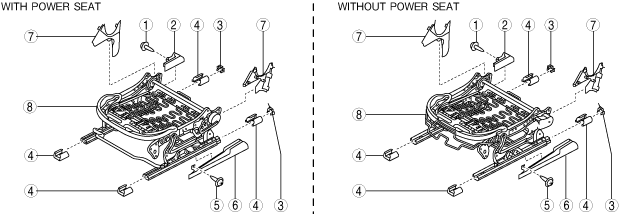

ac5wzw00013754

1	Screw
2	Lower cover
3	Protector
4	Rail cover
5	Screw
6	Cushion frame cover
7	Reverse cover
8	Adjuster unit

2.  Assemble in the reverse order of disassembly.
