KEYLESS ANTENNA [ADVANCED KEYLESS ENTRY SYSTEM]
id091400108033
Purpose
• Outputs a request signal and specifies the remote transmitter location.
Function
• The keyless antenna outputs request signals to the inside and outside of the vehicle based on the signals from the LF control unit.
Structure/Construction, Operation

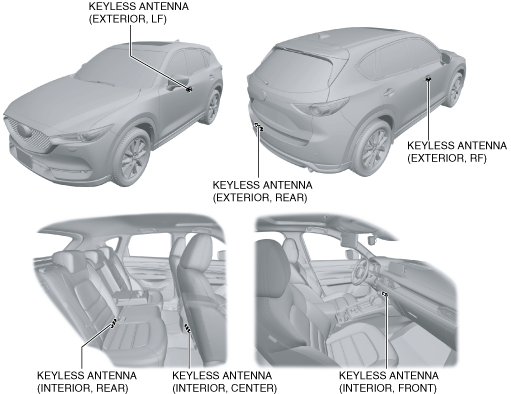

• The antennas for request signal output form the request signal output range at 6 locations.
Request signal output range
-
• The keyless antennas for the vehicle exterior (driver-side, passenger-side, rear) form the request signal output area in the range of an approx. 80 cm {31 in} radius from each location and communicate with the advanced key.
• The keyless antennas for the vehicle interior (front, center, rear) form the output range inside the vehicle.
Fail-safe
• Not applicable
