THEFT-DETERRENT SYSTEM OPERATION RECORD

id091400113600

Purpose

• The theft-deterrent system operation history is a record of the theft-deterrent system operation.

Function

• The theft-deterrent system operation record is stored by the rear body control module (RBCM) and displayed using the Mazda Modular Diagnostic System (M-MDS).

• The rear body control module (RBCM) records the following when the theft-deterrent system is operated.

― Time and date

― Theft-deterrent system operation time

― Location in theft-deterrent system where operation was triggered

Structure/Construction

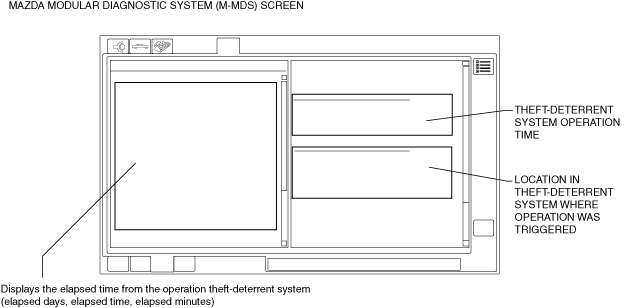

• Based on the stored record, the rear body control module (RBCM) displays the following operation record on the Mazda Modular Diagnostic System (M-MDS) screen.

ac5wzn00001074

Operation

• The rear body control module (RBCM) sends an alarm sound signal to the theft-deterrent siren or theft-deterrent horn, and records the operation history simultaneously.

Fail-safe

• Not applicable
