GLASS PANEL ADJUSTMENT


id091500800600

1.  Fully close the glass panel.

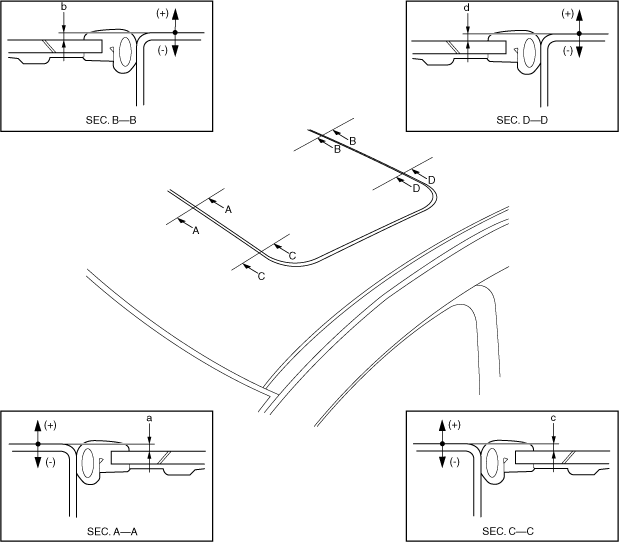

2.  Measure the gap and height between the glass panel and body.

3.  Loosen the installation screws and adjust the glass panel.

ac5wzw00011814

Standard clearance
a: –2.4—0.2 mm {–0.094—0.007 in}
b: –2.3—0.3 mm {–0.09—0.01 in}
c: –2.1—0.5 mm {–0.08—0.01 in}
d: –1.9—0.7 mm {–0.07—0.02 in}

4.  Tighten the installation screws. (See GLASS PANEL REMOVAL/INSTALLATION.)

5.  When inserting the plastic card between the weatherstrip and the body, and moving the plastic card in the directions of the arrows shown in the figure, verify that resistance with the plastic card can be felt.

am6zzw00011323

•   If the glass panel is not sealed, perform Steps 3—4 and adjust again.
