SIDE GARNISH REMOVAL/INSTALLATION

id091600400000

Caution

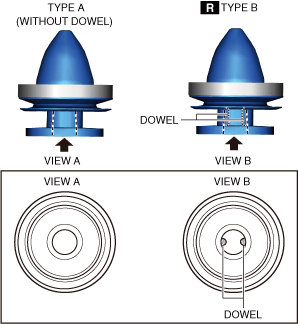

•  There are two types of clips, type A and type B.

ac5wzw00013769

•  Because the type B clip cannot be reused, always verify the clip type after removing the side garnish and if the clip is type B, replace it with new one.

Front

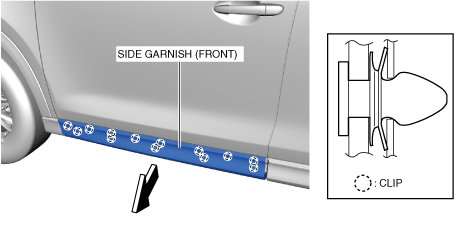

1.  Pull the side garnish in the direction of the arrow shown in the figure and remove it.

ac5wzw00013770

2.  Install in the reverse order of removal.

Rear

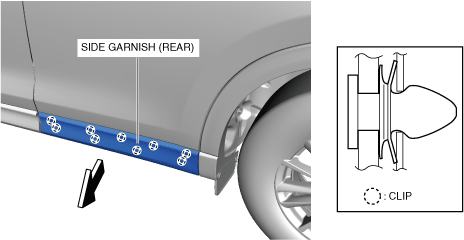

1.  Pull the side garnish in the direction of the arrow shown in the figure and remove it.

ac5wzw00013771

2.  Install in the reverse order of removal.
