ROOF MOLDING REMOVAL

id091600447800

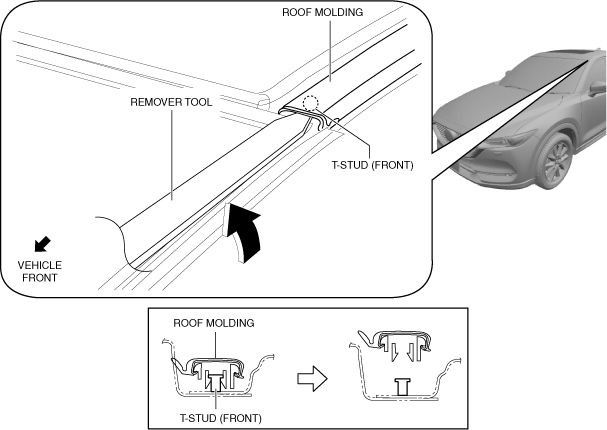

1.  Insert a remover tool into the position shown in the figure.

ac5wzw00011033

2.  Move the remover tool in the direction of the arrow shown in the figure and detach the roof molding from the front T-stud.

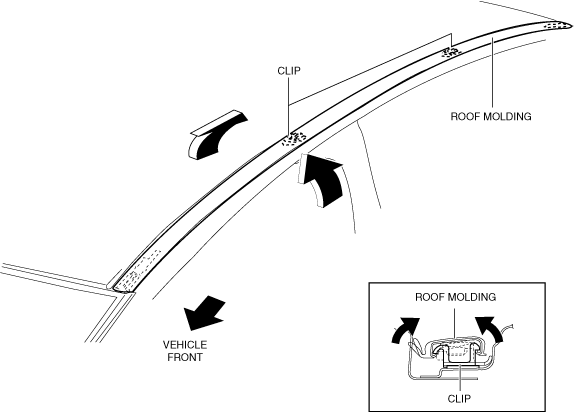

3.  Rotate the roof molding in the direction of the arrows shown in the figure while pulling it up and remove it starting from the clips at the front of the vehicle.

ac5wzw00013845

4.  Insert a remover tool into the position shown in the figure.

ac5wzw00013846

5.  Move the remover tool in the direction of the arrows shown in the figure and detach the roof molding from the rear T-stud.

6.  Remove the roof molding.
