RADIATOR GRILLE DISASSEMBLY/ASSEMBLY

id091600460100

Replace parts

Rivet

Number of parts: 8

Used place: Radiator grille

1.  Remove the front camera. (with 360° view monitor system) (See FRONT CAMERA REMOVAL/INSTALLATION.)

2.  Disassemble in the order indicated in the table.

Step 1

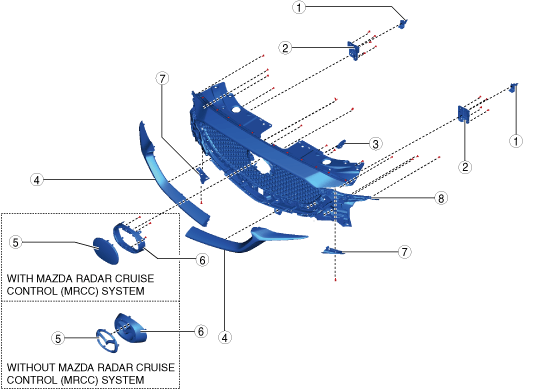

ac5wzw00009733

1
Locator pin
2
Locator pin bracket
3
Clip
4
Lower grille molding
5
Mascot
6
Mascot base
7
Grille garnish
8
Radiator grille component

Step 2

ac5wzw00011037

1
Upper face
(SeeRivet Removal Note.)
(SeeUpper Face Removal Note.)
2
Grille mesh
3
Radiator grille bracket
4
Radiator grille reinforcement

3.  Assemble in the reverse order of disassembly.


Rivet Removal Note

Caution
•   If an inappropriate drill diameter is used, the front bumper face and the radiator grille may be damaged.

1.  When removing the rivet, perform the following procedure:

(1)  Secure the rivet pin from the radiator grille reinforcement side using needle-nose pliers.

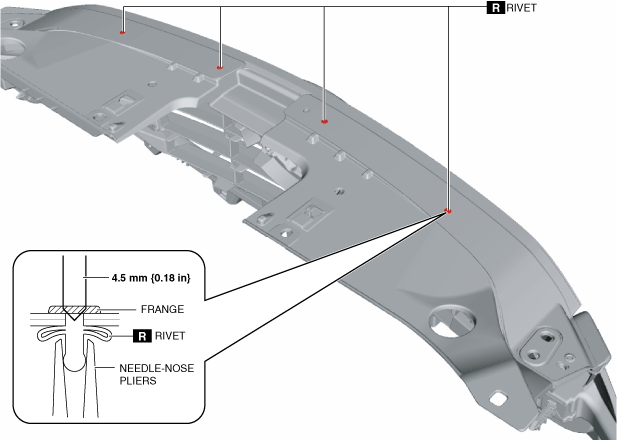

ac5wzw00013847

2.  Use the following drill diameter.

Drill diameter:
4.5 mm {0.18 in}

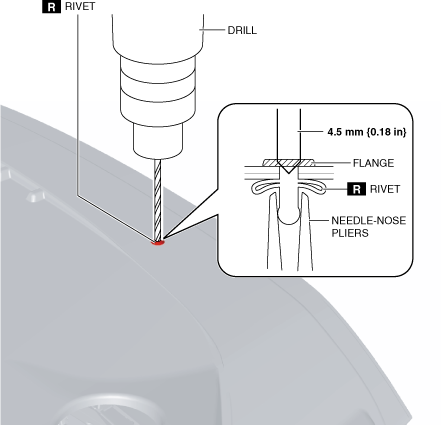

3.  Remove the rivet flange using a drill and remove the rivet.

ac5wzw00011039

4.  Remove any rivet shavings from the upper face, radiator grille bracket and radiator grille reinforcement.


Upper Face Removal Note

1.  Insert the scale in the position shown in the figure and lift the tabs up.

ac5wzw00011040
