SIDE STEP MOLDING REMOVAL/INSTALLATION

id091600801800

1.  Remove the front over fender lower. (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

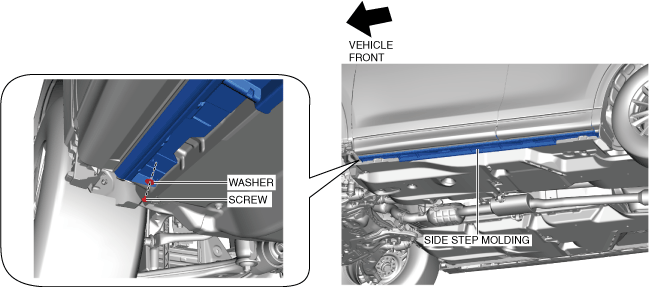

2.  Remove the screw and washer.

ac5wzw00011055

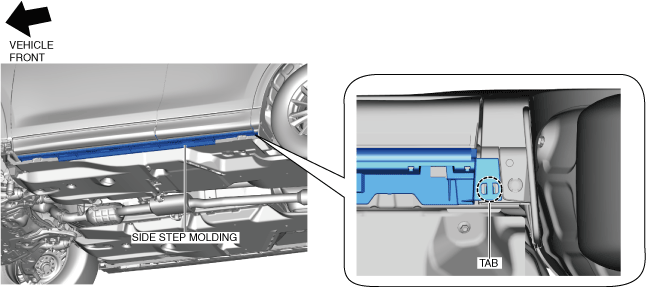

3.  Disengage the tabs.

ac5wzw00011056

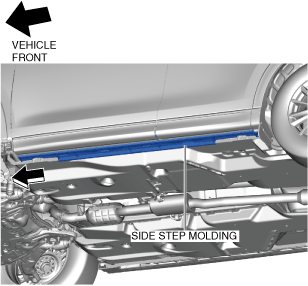

4.  Move the side step molding in the direction of the arrow shown in the figure and remove it.

ac5wzw00011057

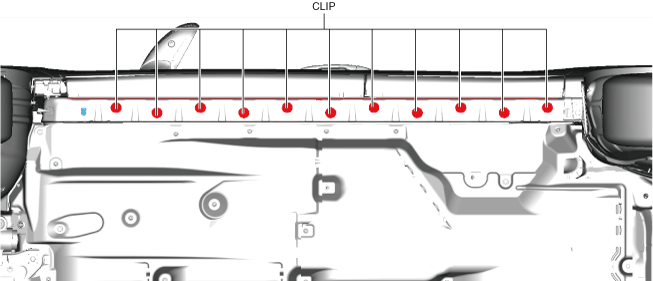

5.  Remove the clips from the body.

ac5uuw00005170

6.  Install the clips to the side step molding.

7.  Install in the reverse order of removal.
