REAR BELTLINE MOLDING REMOVAL/INSTALLATION
id091600804700
Replace parts
|
Rear beltline molding
Number of parts: 1
Used place: Rear beltline molding
|

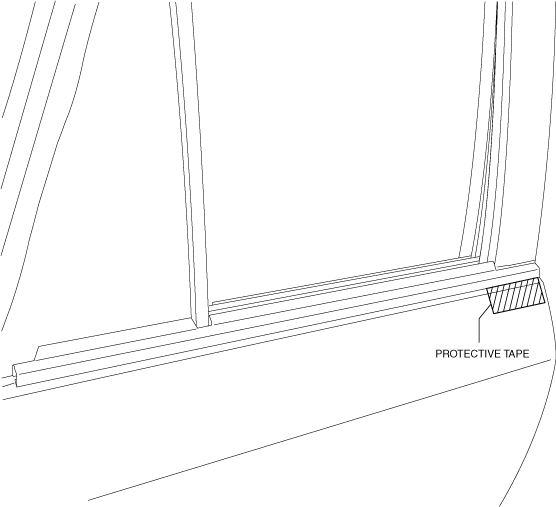

1. Affix protective tape to the position shown in the figure.
ac5wzw00011128
|
2. Fully open the rear door glass.

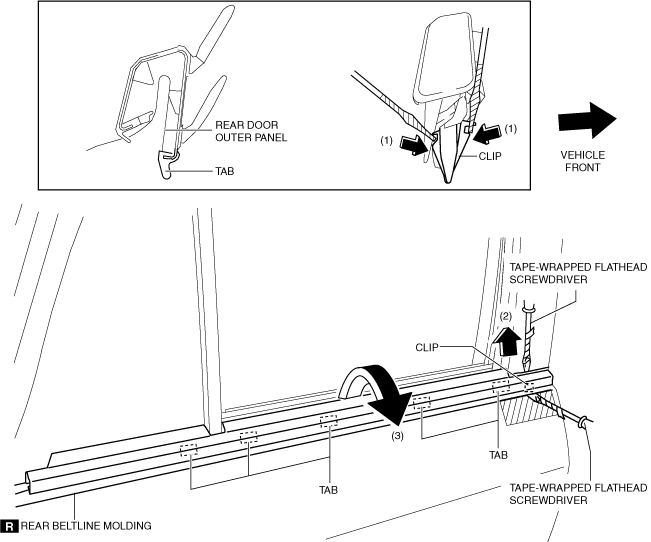

3. Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of arrows (1) to detach the clip.
ac5uuw00007251
|
4. Pull up the rear side of rear beltline molding in the direction of arrow (2) shown in the figure.
5. Rotate the rear beltline molding in the direction of arrow (3) shown in the figure and remove it while detaching tabs.
6. Install in the reverse order of removal.
