FRONT BELTLINE MOLDING REMOVAL/INSTALLATION

id091600804800

Replace parts

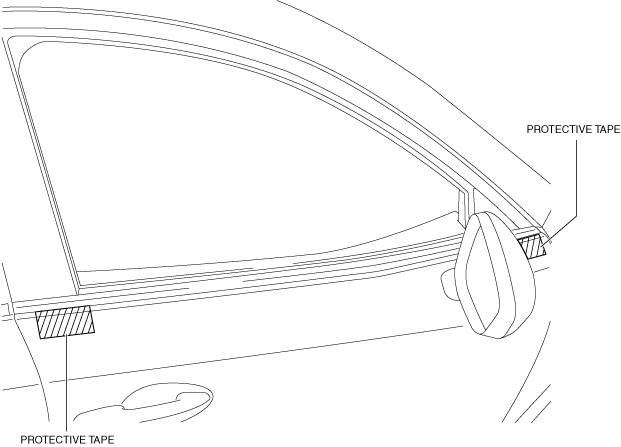

1.  Affix protective tape to the position shown in the figure.

ac5wzw00011137

2.  Fully open the front door glass.

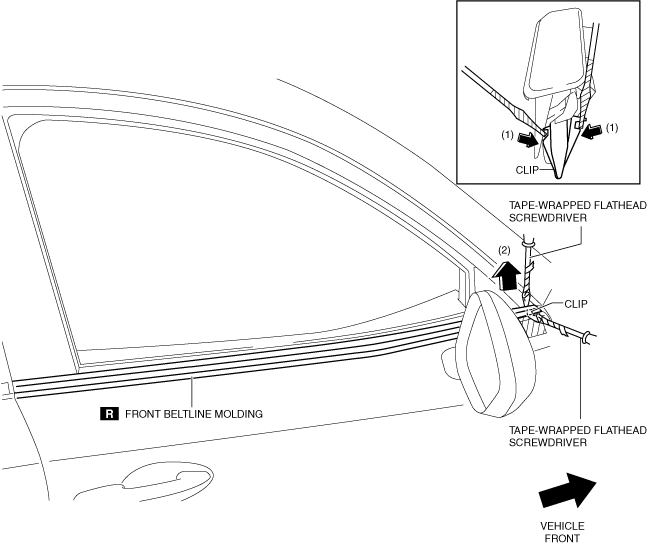

3.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of arrows (1) to detach the clip.

ac5wzw00013853

4.  Pull up the front side of front beltline molding in the direction of arrow (2) shown in the figure.

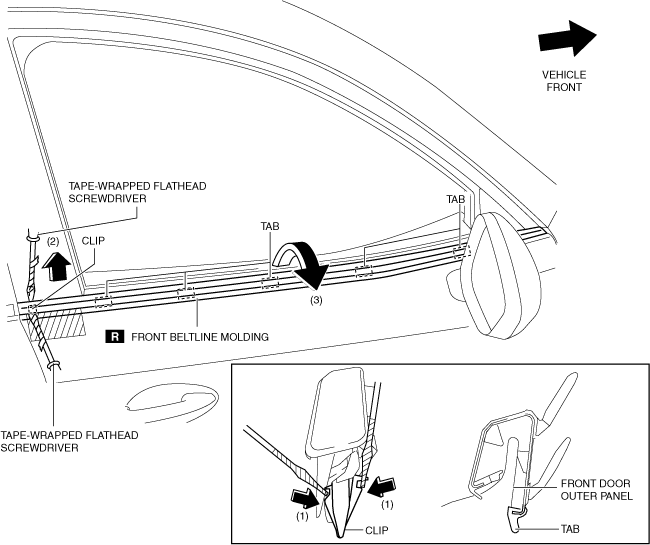

5.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of arrows (1) to detach the clip.

ac5uuw00007249

6.  Pull up the rear side of front beltline molding in the direction of arrow (2) shown in the figure.

7.  Rotate the front beltline molding in the direction of arrow (3) shown in the figure and remove it while detaching tabs.

8.  Install in the reverse order of removal.
