FLOOR UNDER COVER REMOVAL/INSTALLATION


id091600820200


Floor under cover No.1 (LH)

1.  Lift up the vehicle.

2.  Remove the bolts.

ac5wzw00011064

3.  Remove the fasteners.

4.  Remove the nuts.

5.  Remove the floor under cover No.1 (LH).

6.  Install in the reverse order of removal.


Floor under cover No.1 (RH)

1.  Lift up the vehicle.

2.  Remove the bolts.

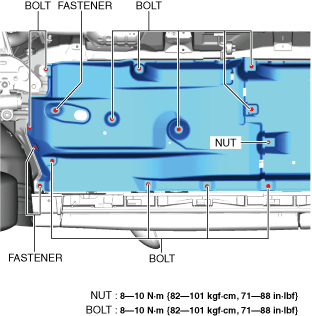

ac5wzw00011065

3.  Remove the fasteners.

4.  Remove the nuts.

5.  Remove the floor under cover No.1 (RH).

6.  Install in the reverse order of removal.


Floor under cover No.2 (LH)

1.  Lift up the vehicle.

2.  Remove the bolts.

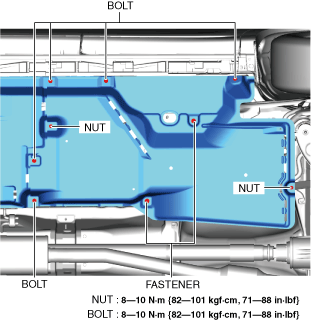

ac5wzw00011066

3.  Remove the fasteners.

4.  Remove the nuts.

5.  Remove the floor under cover No.2 (LH).

6.  Install in the reverse order of removal.


Floor under cover No.2 (RH)

1.  Lift up the vehicle.

2.  Remove the bolts.

ac5wzw00011067

3.  Remove the fasteners.

4.  Remove the nuts.

5.  Remove the floor under cover No.2 (RH).

6.  Install in the reverse order of removal.
