DEFLECTOR REMOVAL/INSTALLATION

id091600900500

Front deflector

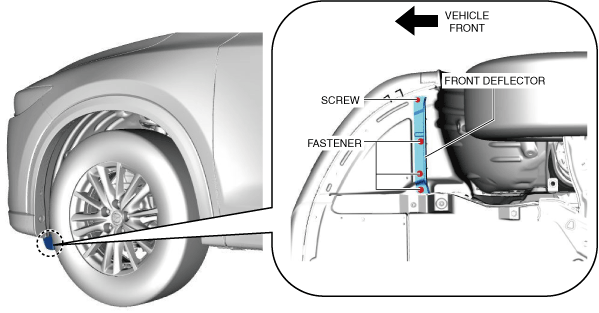

1.  Remove the screw.

ac5uuw00009431

2.  Remove the fasteners.

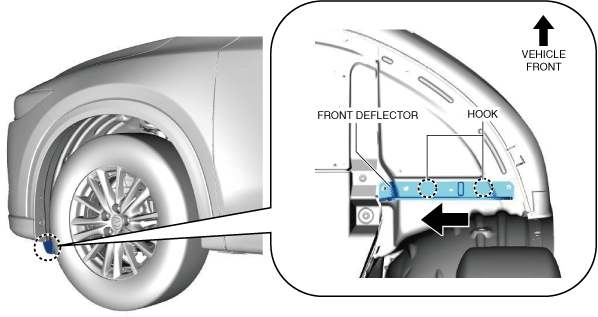

3.  Pull the front deflector in the direction of the arrow shown in the figure and remove it while detaching the hooks.

ac5uuw00009432

4.  Install in the reverse order of removal.

Rear deflector

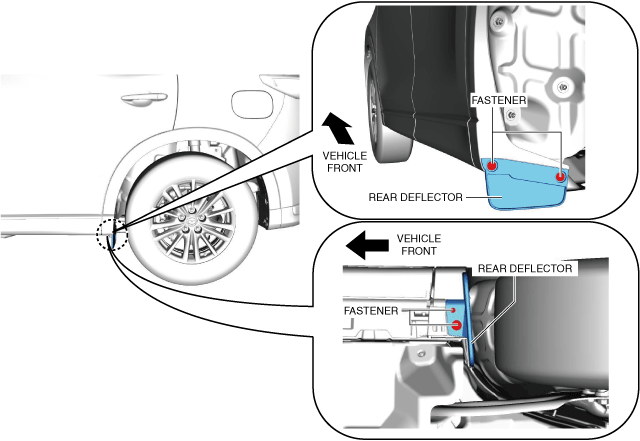

1.  Remove the fasteners.

ac5uuw00009433

2.  Remove the rear deflector.

3.  Install in the reverse order of removal.
