ORNAMENT INSTALLATION

id091600994300

TYPE A

1.  Remove any grease or dirt from the ornament installation surface of the liftgate.

2.  Warm the ornament installation area to between 15 °C {59 °F} and 40 °C {104 °F} using a heat gun.

3.  Install the ornament to the position shown in the figure.

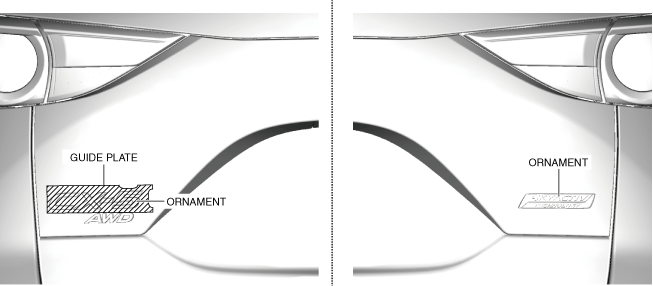

ac5wzw00011070

AWD

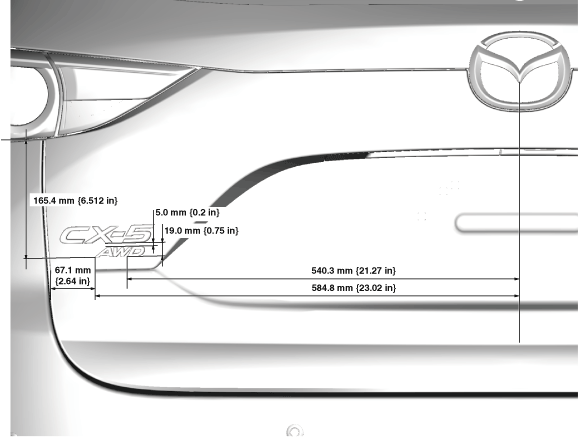

ac5wzw00011071

4.  Press the ornament with the force of 49 N {5.0 kgf, 11 lbf} to adhere the double-sided adhesive tape to the ornament installation area.

TYPE B

1.  Remove any grease or dirt from the ornament installation surface of the liftgate.

2.  Warm the ornament installation area to between 15 °C {59 °F} and 40 °C {104 °F}using a heat gun.

3.  Install the ornament to the position shown in the figure.

ac5wzw00011072

4.  Press the ornament with the force of 49 N {5.0 kgf, 11 lbf} to adhere the double-sided adhesive tape to the ornament installation area.
