CLUSTER SWITCH REMOVAL/INSTALLATION
id091700601500
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the driver-side front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
3. Remove the driver-side front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
4. Partially peel back the seaming welt.
ac5uuw00006700
|
5. Remove the bolt.
ac5wzw00011193
|

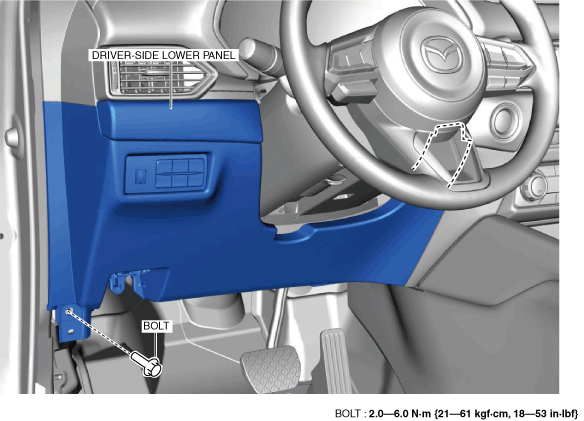

6. Pull the driver-side lower panel in the order of arrows (1) and (2) shown in the figure, and detach the clips, hook, and tab.
ac5wzw00013158
|
7. Set the driver-side lower panel aside to a position where the cluster switch hooks can be detached.
8. Disconnect the cluster switch connector.

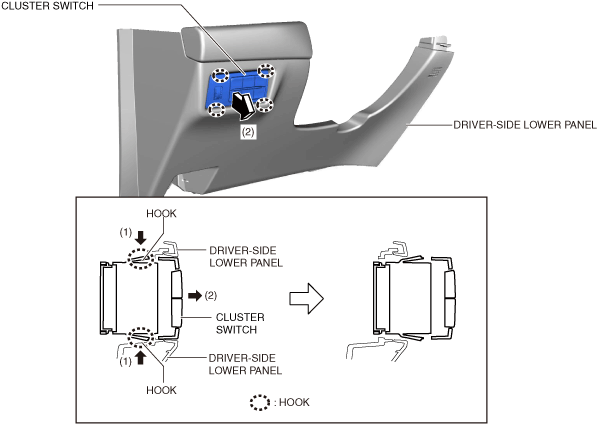

9. With the hooks pressed in the direction of arrows (1) shown in the figure, push out the cluster switch in the direction of arrow (2) and remove it from the driver-side lower panel.
ac5wzw00013159
|
10. Install in the reverse order of removal.
