CONSOLE SIDE PANEL REMOVAL/INSTALLATION


id091700606600

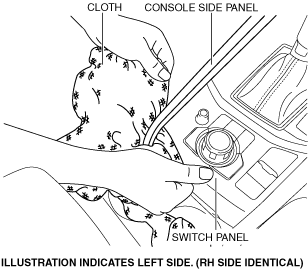

1.  Insert the clean cloth in the position shown in the figure.

ac5wzw00011715

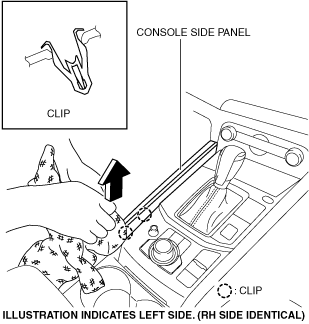

2.  Pull the clean cloth up in the direction of the arrow shown in the figure and remove the clips.

ac5wzw00011716

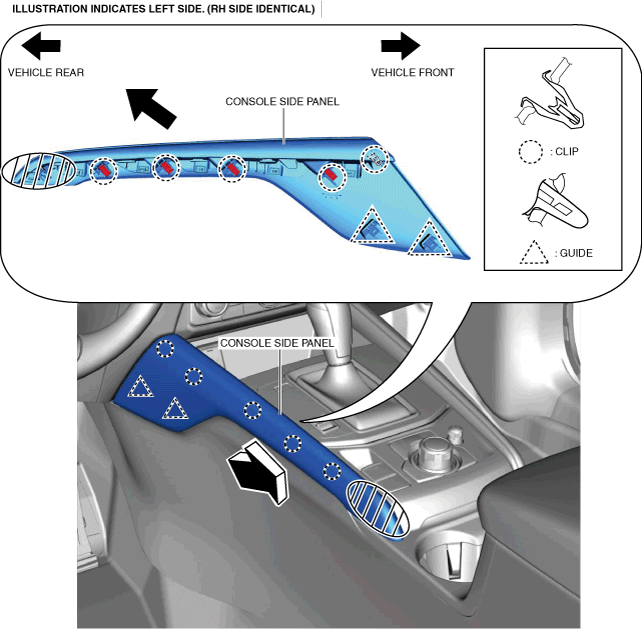

3.  Hold the shaded area shown in the figure, move the console side panel in the direction of the arrow, and remove it while detaching the clips and guides.

ac5wzw00011717

4.  Install in the reverse order of removal.
