REAR DOOR TRIM REMOVAL/INSTALLATION

id091700802600

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of the arrow and remove the inner handle cover while detaching the tabs.

ac5wzw00013190

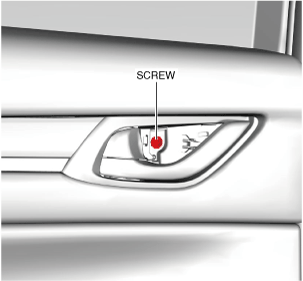

3.  Remove the screw.

ac5uuw00006163

4.  Remove the cover, then remove the screw.

ac5uuw00006164

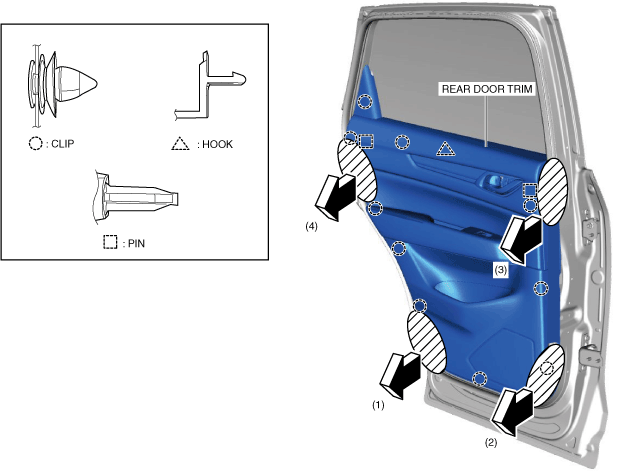

5.  Hold each shaded area and pull the rear door trim in the order of arrows (1), (2), (3), and (4), and remove it while detaching the clips, hook, and pin.

ac5uuw00007868

6.  Disconnect the power window subswitch connector.

7.  Install in the reverse order of removal.
