TRUNK BOARD REMOVAL/INSTALLATION

id091700810000

Center Trunk Board

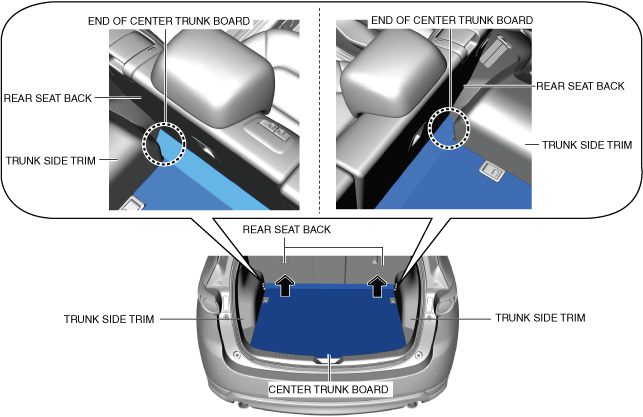

1.  Move the center trunk board in the direction of the arrows shown in the figure, and remove the ends of the center trunk board from the gap between the trunk side trim and the rear seat back.

ac5uuw00005385

2.  Remove the center trunk board in the direction of the arrow shown in the figure.

ac5uuw00005386

3.  Install in the reverse order of removal.

Trunk Board RH/LH

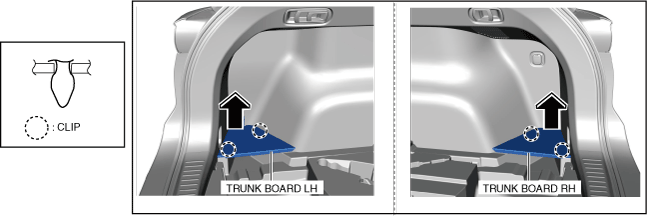

1.  Move the trunk board RH and trunk board LH in the direction of the arrows shown in the figure while detaching the clips.

ac5uuw00005387

2.  Install in the reverse order of removal.
