LIGHTING SYSTEMS

id091800010000


Outline

•  Front combination lights have been adopted with parts related to the front exterior lights grouped and housed together.
•  The following systems have been adopted to the headlights.
―  Auto light system (with auto light system)
―  Headlight auto leveling system
―  Running light system (with running light system)
―  Coming home light
―  Leaving home light
•  Front fog lights have been adopted. (with front fog lights)
•  Rear fog light has been adopted. (with rear fog light)
•  Emergency signal system (ESS) has been adopted.
•  A room light control system has been adopted in which illumination time and illumination level of the interior lights change.

Specification

—: Not applicable

Item

Bulb specification

(UNECE (SAE))

Spec (W) × Quantity
Exterior
Headlight HI/LO
With parking light (bulb type)
LED*
48 / 43 W or equivalent
Running light bulb (with running light system)
W21/5W (—)
21 × 2
Parking light bulb
W5W (—)
5 × 2
Front turn light bulb
WY21W (—)
21 × 2
Headlight HI/LO
With parking light (bulb type) and without adaptive LED headlights
LED*
48 / 43 W or equivalent
Running light/parking light (with running light system)
LED*
16 W or equivalent
Parking light (without running light system)
LED*
8.8 W or equivalent
Running light (with running light system)
LED*
16 W or equivalent
Front turn light bulb
WY21W (7443NA)
21 × 2
Headlight HI/LO
With adaptive LED headlights
LED*
70.7 / 43 W or equivalent
Side-illuminating LED
LED*
9 W or equivalent
Running light/parking light
LED*
16 W or equivalent
Running light
LED*
16 W or equivalent
Front turn light bulb
WY21W (7443NA)
21 × 2
Front fog light (with front fog light)
LED*
8 W or equivalent
Side turn light
LED*
3 W or equivalent
Rear turn light bulb
WY21W (7443NA)
21 × 2
Brake light/taillight bulb (rear combination light) (bulb type)
W21/5W (7443)
21 / 5
Brake light/taillight (rear combination light) (LED type)
LED*
20.7 / 13.3 W or equivalent
Brake light/taillight (liftgate light) (with brake light/taillight (liftgate light))
LED*
6.75 / 6.75 W or equivalent
Back-up light
LED*
4.97 W or equivalent
Rear fog light bulb (with rear fog light)
W21W (7440)
21 × 1
High-mount brake light
LED*
1.82 W or equivalent
License plate light bulb
W5W (4CP)
5 × 2
Interior
Front map light bulb
— (—)
8 × 2
Rear map light bulb
— (—)
8 × 2
Cargo compartment light bulb
— (—)
8 × 1
Glove compartment light bulb (with glove compartment light)
— (—)
1.7 × 1
Vanity mirror illumination bulb (with vanity mirror illumination)
— (—)
2 × 2

*1  :The LED for each light cannot be replaced separately. If there is any malfunction in the LED, replace each light as a single unit.

Structure/Construction


System structure

Exterior

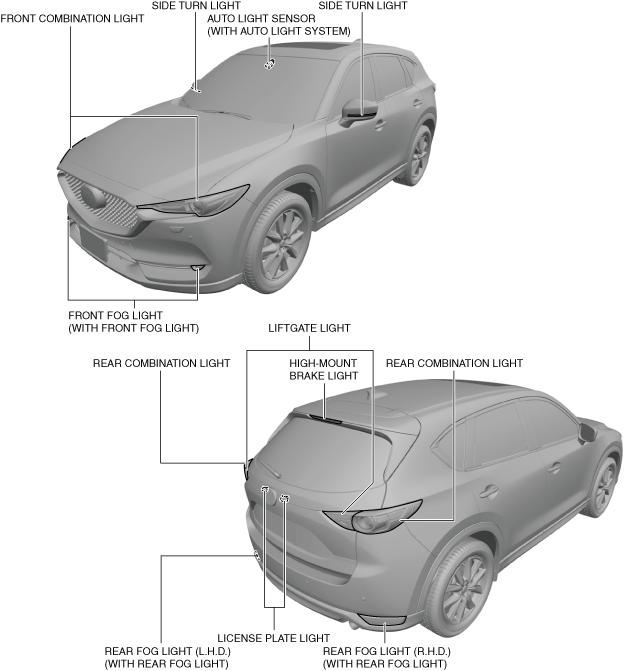

ac5wzn00003633

Interior

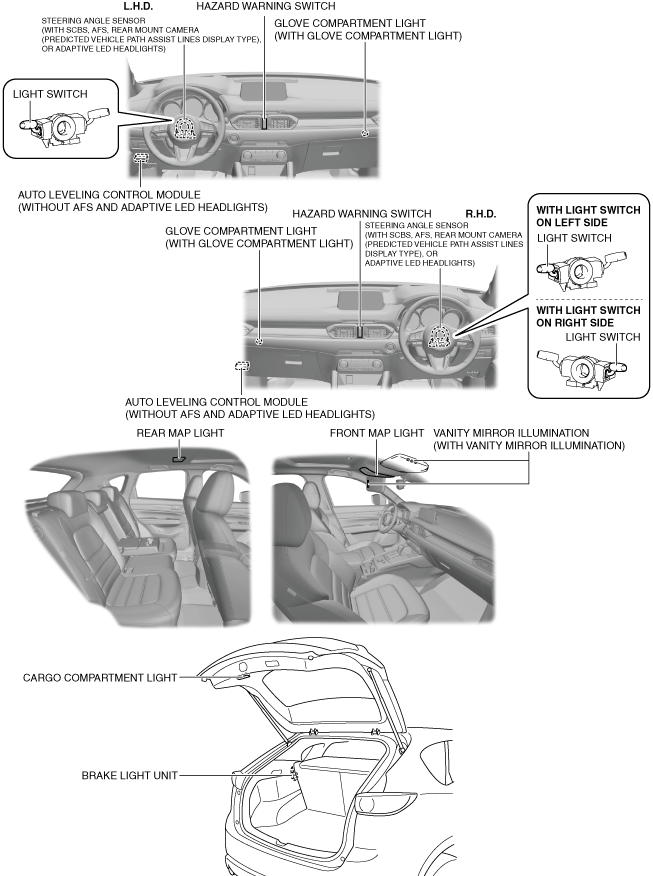

ac5uun00002485
