RUNNING LIGHT SYSTEM

id091800011700


Outline

•  The running light system automatically turns on the running lights, taillights (taiwan), and license lights (taiwan) while the vehicle is driven.

Function

•  The front body control module (FBCM) controls the running light system according to the vehicle conditions.

—: Not applicable

Vehicle speed

Ignition switch

Parking brake

Selector lever position (ATX)

Light switch position

Dimmer switch position

Auto light system

Taillight and license plate light

(Taiwan)

Running light

Type A

Type B
3 km/h {2 mph} or more
ON (engine on)
Release
Except P position
OFF
HI
—
On
On
On
LO
On
On
On
FLASH-TO-PASS
On
On
Off
AUTO
HI
Off
On
On
On
On
On
Off
Off
LO
Off
On
On
On
On
On
Off
Off
FLASH-TO-PASS
Off
On
On
Off
On
On
Off
Off
TNS (parking lights)
HI
—
On
Off
On
LO
On
Off
On
FLASH-TO-PASS
On
Off
Off
HEAD
HI
—
On
Off
Off
LO
On
Off
Off
FLASH-TO-PASS
On
Off
Off


Personalization features

•  The running light system can be switched between operable and inoperable (initial setting is [On] (running light illumination)). For details on the personalization features, refer to the [LIGHTING SYSTEM PERSONALIZATION]. (See LIGHTING SYSTEM PERSONALIZATION.)


Structure/Construction

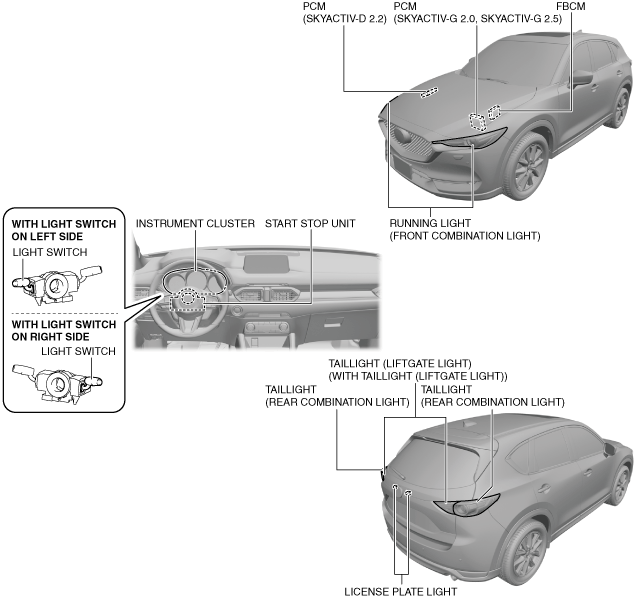

System structure

ac5wzn00003651

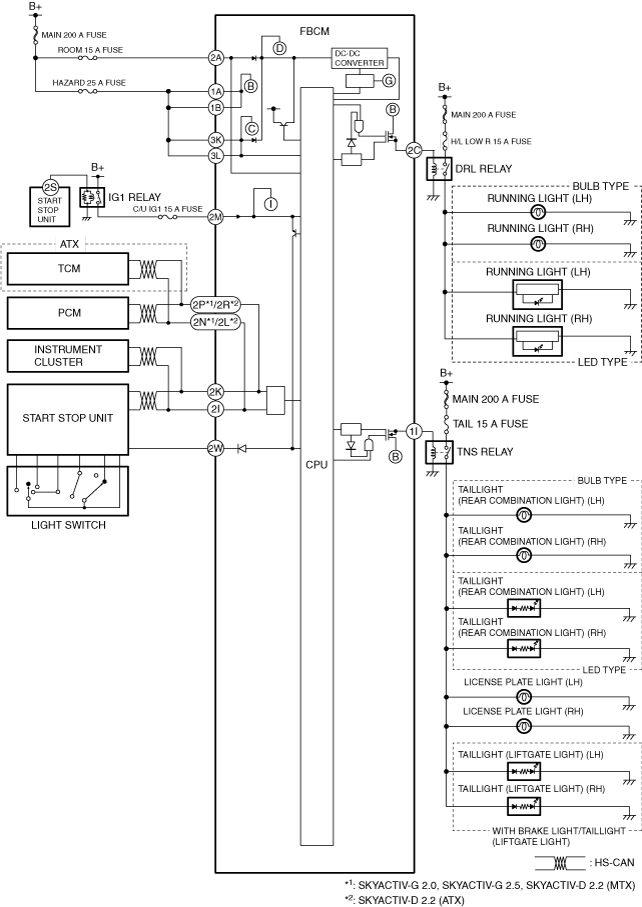

System wiring diagram

ac5wzn00003652


Operation


Operation conditions

•  When the following operation conditions are met, the front body control module (FBCM) activates the running light system.
―  Vehicle speed: 3 km/h {2 mph} or more (vehicle speed signal)
―  Ignition switched ON (engine on)(ignition switch position signal)
―  Parking brake: Released (parking brake switch signal)
―  Selector lever position (ATX): Except P position (selector lever position signal)
―  Light switch position: OFF, AUTO (auto light system not operated), or TNS (parking lights)(light switch signal)


Operation

1.  When the operation conditions are met (1), the front body control module (FBCM) turns the DRL relay on (2). In addition, it turns the TNS relay on (2). (taiwan)

2.  When the DRL relay and TNS relay (taiwan) turn on, the running light, license plate light (taiwan), and taillight (taiwan) are illuminated (3).

ac5wzn00003653
