VANITY MIRROR ILLUMINATION BULB REMOVAL/INSTALLATION

id091800808200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

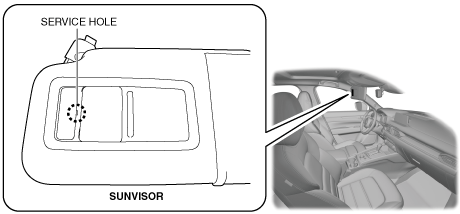

2.  Insert the remover tool into the service hole at the position shown in the figure.

ac5wzw00008725

3.  Move the remover tool in the direction of the arrow shown in the figure to detach the lens tabs from the sunvisor.

ac5uuw00005459

4.  Remove the lens.

ac5uuw00005460

5.  Remove the vanity mirror illumination bulb.

6.  Install in the reverse order of removal.
