FRONT MAP LIGHT INSPECTION


id091800808600


Map Light (Bulb Type)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

3.  Verify that the continuity between the front map light terminals is as indicated in the table.

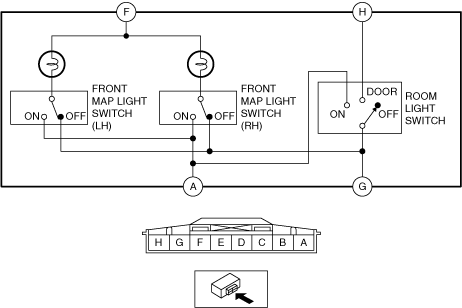

am6zzw00017439

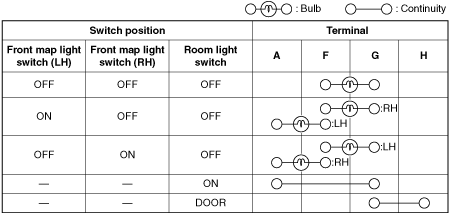

am6zzw00017438

•  If not as indicated in the table, replace the front map light bulb or the front map light. (See FRONT MAP LIGHT BULB REMOVAL/INSTALLATION.) (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)


Map Light (LED Type)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

3.  Verify that the continuity between the front map light terminals is as indicated in the table.

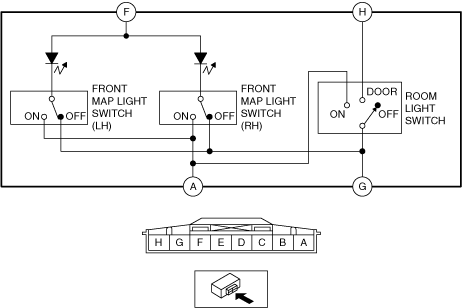

am6zzw00017442

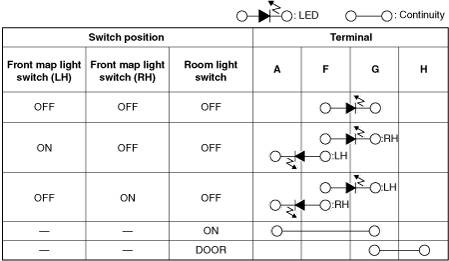

am6zzw00017443

•  If not as indicated in the table, replace the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)(See FRONT MAP LIGHT BULB REMOVAL/INSTALLATION.)


Console Ambient Light (With Down Light)

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)

3.  Apply battery voltage to front map light terminal D, and connect terminal B to ground.

am6zzw00015419

4.  Verify that the LED turns on.

•  If the LED does not turn on, replace the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION.)
