LICENSE PLATE LIGHT BULB REMOVAL/INSTALLATION

id091800857800

Bulb Type

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

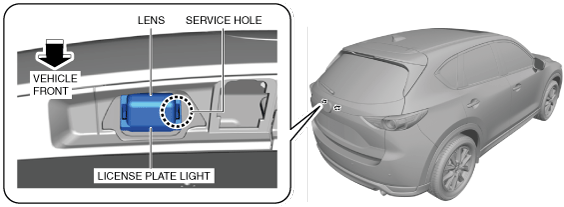

2.  Insert the remover tool into the service hole at the position shown in the figure.

ac5wzw00008733

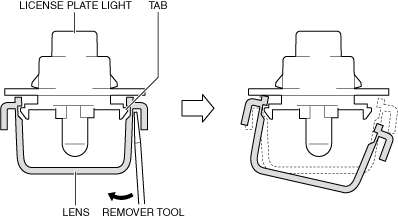

3.  Move the remover tool in the direction of the arrow shown in the figure to widen the lens and detach the license plate light tab from the lens.

ac5uuw00005492

4.  Remove the lens.

ac5uuw00005493

Caution

•  If there is oil or dirt on the surface of the light bulb, excessive heat will build up and the life of the light bulb will be shortened. If the light bulb glass area is touched, wipe off any dirt using a soft cloth dampened with detergent diluted in water (approx. 5 %).

5.  Remove the license plate light bulb.

6.  Install in the reverse order of removal.

LED Type

Note

•  The LED for the license plate light cannot be replaced separately. If there is any malfunction in the LED, replace the license plate light as a single unit. (See LICENSE PLATE LIGHT REMOVAL/INSTALLATION.)
